    Electro-Voice ZXA1-Sub Powered Subwoofer

    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 14J5-K1YN

    Web Item #ELVZXA1SUB

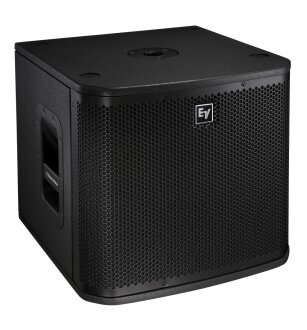

    ElectroVoice ZXA1 Powered Subwoofer
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Brochure Manual Specifications
    Electro-Voice Warranty: Electro Voice Warranty ´╗┐Electro-Voice offers the following warranties: 5 years on speakers; 3 years on electronics; and 2 years on microphones. If you have additional warranty questions, please call the manufacturer at 800-392-3497
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Today
    •
    • 2 Day: $32
    • Overnight: $96
    SpeedPlay: 2 payments of $299.50
    $599 Seen a lower price?
    In Stock | Will Ship Today
    •
    • 2 Day: $62
    • Overnight: $198
    SpeedPlay: 2 payments of $599.00
    $1,198 Seen a lower price?
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Same Day Music Description

    So you think a small rig can't deliver big sound? Not so fast. Designed to be compact and portable, the Electro-Voice ZXA1-Sub outputs 700 Watts of powerful bass response thanks to its 12-inch woofer and integrated Class D amplifier, yet it weighs less than 50 pounds and is about the size of an 18- x 18-inch cube. The ZXA1-Sub is a standout choice for gigging musicians and DJs.

    700W of Awesome

    Accurate sound reproduction and articulated lows are thrown your way when you tap in to the booming potential of Electro-Voice's ZXA1-Sub. The powered subwoofer maintains a forceful 700-watt power rating and runs cool even in the most demanding live performance situations, thanks to a Class D amplifier that reduces heat, cuts down on the weight of the circuitry, saves space, and works as efficiently as can be. The E-V ZXA1-Sub weighs in at 46 pounds.

    The amp runs through a single EVS-12S 12-inch woofer designed to deliver clearly defined low-end frequencies, for bigger than ever bass tone that never sounds boxy. Even when pushed to its limit, the ZXA1-Sub will still faithfully reproduce articulate lows. High SPL handling of 126 dB is icing on the cake.

    Handy Controls

    Intuitive to learn and use, the ZXA1-Sub has two XLR balanced stereo inputs, two XLR balanced stereo outputs, and a few essential controls for tweaking your tone: a Volume Level knob on the rear-panel, a Polarity Switch knob, and your choice of Normal or Bass Boost modes.

    The Right Hookups

    The ZXA1-Sub sports a specially designed 9-ply, 15-mm wood cabinet with a 16-gauge steel grille for much-needed protection against drops and kicks that are just bound to happen. For extra durability, the active subwoofer is internally braced. An integrated handle lends a helping hand during transport, and a built-in pole mount is there for those times when ground setup just won't do. Dual XLR stereo inputs and outputs allow you to use the ZXA1-Sub with Electro-Voice ZXA powered speakers or with your existing speaker rig.

    Features:

    - Powered subwoofer
    - Integrated 700-Watt Class D amplifier
    - EVS-12S 12" woofer delivers powerful bass response
    - Switchable EQ modes for customizing tone to your applications
    - 126 dB maximum SPL
    - LED indicators for Power On and Limit provide at-a-glance status checks
    - Dual XLR stereo inputs and outputs for connecting to other parts of your PA system
    - Pole-mounting cup for full-range systems
    - 9-ply/15-mm wood enclosure
    - 16-gauge steel grille for protection against drops and kicks
    - Measures 15.75" x 17.5" x 18"
    - Internally braced for durability
    - Integrated handle for easy transport
    - Weighs 46 lbs.

    Same Day Music is an authorized dealer of Electro-Voice products.

    Electro-Voice ZXA1-Sub Powered Subwoofer Product Description

    The ZXA1-Sub is designed to provide the ultimate combination of portability, performance, and power in a lightweight, stylish, small-format package. Though equipped with a heavy-duty EV-engineered woofer, a state-of-the-art 700-watt amplifier, a durable 15-mm wood enclosure, and a maximum SPL rating of 126 dB, the ZXA1-Sub weighs-in at just 46 lbs and sports a trim 15.75 x 17.5 x 18 inch profile.

    Add easy-to-use controls and connectivity to the equation and a ZXA1-Sub makes enhancing a compact sound system with professional-quality low-end easier than ever.

    Features

    - Integrated 700-W Class-D amplifier
    - EVS-12S 12-inch woofer
    - 126-dB maximum SPL
    - Dual XLR stereo inputs and outputs
    - Pole mount for full-range systems
    - 9-ply/15-mm wood enclosure, internally braced, with textured paint
    - DSP with low-end boost and polarity control
    - 46 pounds, with integral handle for easy carriage
    - Compact 15.75 x 17.5 x 18 in. profile


    Same Day Music is an authorized dealer of Electro-Voice products.

    ElectroVoice ZXA1 Powered Subwoofer Technical Description

    - Frequency Response (-3dB): 53Hz-93Hz1
    - Frequency Range (-10dB): 44Hz-118Hz1
    - Max. Measured SPL: 126dB1, 2
    - Coverage (Horizontal x Vertical): Omnidirectional
    - Power Rating: 700W
    - LF Transducer: (1) EVS-12S, 305mm (12 in.) Woofer
    - Crossover Frequency: 100Hz
    - Connectors:
    - (2) XLR Stereo Input,
    - (2) XLR Stereo Output
    - Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
    - Grille: 16GA Steel with Black Powdercoat
    - Mains Requirements: 120V: 90V-132V, 1.0A3, 50-60Hz
    - Dimensions (H x W x D): 400 x 444.5 x 457.2 mm (15.7 x 17.50 x 18.00 in.)
    - Net Weight: 20.9 kg. (46 lbs.)
    - Shipping Weight: 26.5kg (56.5lbs)


    Same Day Music is an authorized dealer of Electro-Voice products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 60 lbs
    Shipping Dimensions: 22 x 20 x 18 in
    Pair
    Shipping Weight: 119 lbs
