EMG DG20 David Gilmour Wired Pickguard
Pre-wired pickguard just take out your old pickguard and pickups, replicated to David's specs.
Product rated 9.0 out of 10 (1 rating)
Read Reviews >>
All instrument parts cannot be returned once opened due to the possibility they have been used. This includes all guitar, amplifier, and turntable parts.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Gibson Modern Tuners
- from $35
- Ernie Ball Regular Slinky Strings
- from $3.90
- Dunlop Dual Design Straplok System
- from $14
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

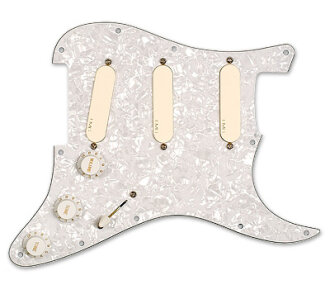

David has used this same EMG System for close to 15 years on his main red Strat. The DG20 comes with ivory SA single coil pickups, wired with an EXG Guitar Expander, an SPC Presence Control, and master volume all on a deluxe White Pearl pickguard with white knobs.
The SA single coil pickups feature Alnico magnets which give a full round tone with an accentuated mid range. The EMG-EXG Guitar Expander circuit increases the bass and treble while reducing the mids, perfect for chord definition at higher volumes. The SPC makes the SA's sing by boosting the mids and turning your single coils into full blown humbuckings. Now you can have the same pickups and tone accessories as David, but keep practicing if you want to get to the "Dark Side of the Moon".
The SA single coil pickups feature Alnico magnets which give a full round tone with an accentuated mid range. The EMG-EXG Guitar Expander circuit increases the bass and treble while reducing the mids, perfect for chord definition at higher volumes. The SPC makes the SA's sing by boosting the mids and turning your single coils into full blown humbuckings. Now you can have the same pickups and tone accessories as David, but keep practicing if you want to get to the "Dark Side of the Moon".
TECHNICAL DESCRIPTION
Logo Color: Gold
Resonant Frequency (KHz): 4.45
Output Voltage (String): 1.0
Output Voltage (Strum): 1.50
Output Noise@ 60Hz: - 91
Output Impedance (Kohm): 10
Current@ 9V (Microamps): 1240
Battery Life (Hours): 500
Maximum Supply (Volts DC): 27
Magnet type: Alnico
Resonant Frequency (KHz): 4.45
Output Voltage (String): 1.0
Output Voltage (Strum): 1.50
Output Noise@ 60Hz: - 91
Output Impedance (Kohm): 10
Current@ 9V (Microamps): 1240
Battery Life (Hours): 500
Maximum Supply (Volts DC): 27
Magnet type: Alnico
