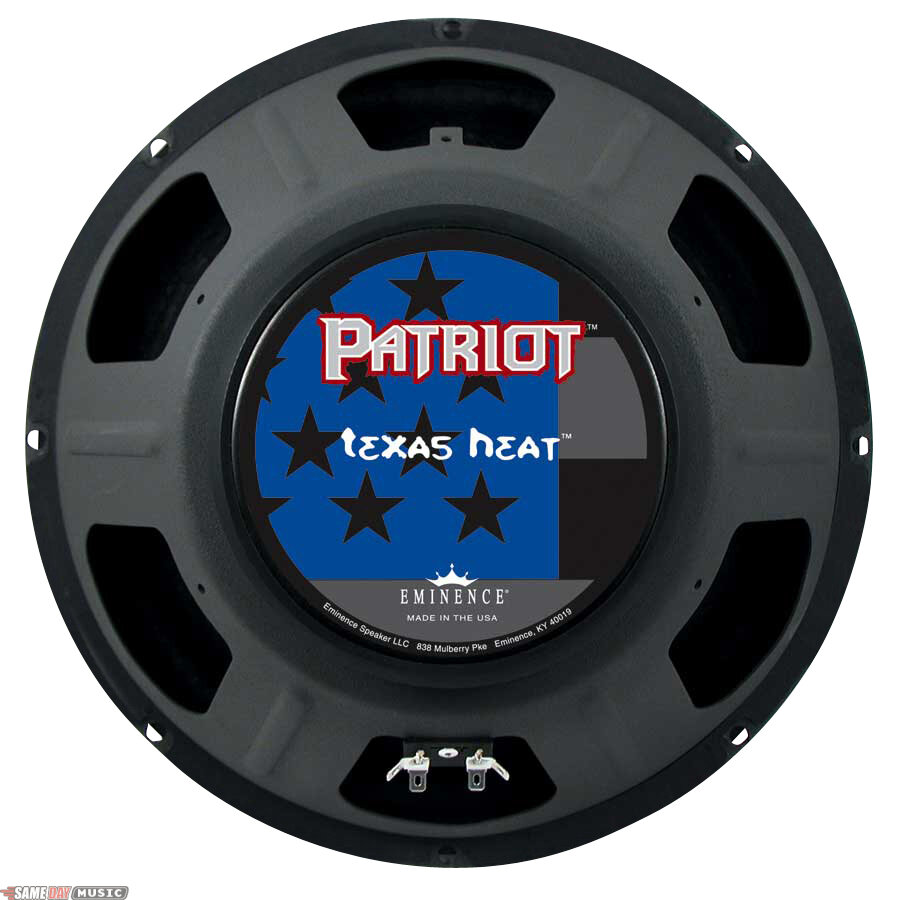

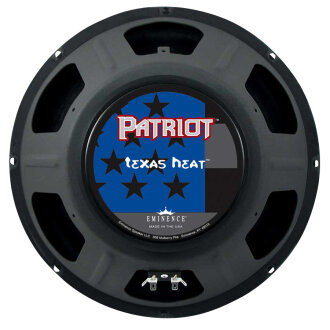

Eminence Texas Heat Patriot Speaker, 150 W, 12 Inch
Perfect speaker for southern rock or blues guitarists.
The fastest way to the lowest price, guaranteed!
Found a lower price? We'll beat it, fast.
Call 866-SHIP-SDM (866-744-7736) with service code QQX-NTQN
More Resources
Manuals and Documents:
Manual
Eminence Warranty:
If you have additional warranty questions,
please call the manufacturer at 502-845-5622
Audio Demos:
Clean
Eminence Texas Heat Heavy Sound
FIND SIMILAR PRODUCTS
Pay only half today and get playing faster.
Pay the remainder in 60 days -
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
only if you're 100% satisified. Just choose the SpeedPlay option at checkout.
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
Recommended Accessories for Eminence Texas Heat Patriot Guitar Speaker (150 Watts, 12 in.)
from $449.95
Eminence Texas Heat Patriot Guitar Speaker (150 Watts, 12") Product Description
Same Day Music is an
authorized Eminence dealer
The Eminence Texas Heat is the perfect guitar speaker for southern rock or blues guitarist. The Texas Heat delivers a nice warm, fat tone with a little top end bite and clarity to cut through a mix while maintaining a rich, bluesy tone. You will find this speaker to be very touch-sensitive with a hint of British flavor. The American guitar speaker that's packin' a little heat, Texas style. authorized Eminence dealer
Same Day Music is an authorized dealer of Eminence products.
Eminence Texas Heat Patriot Guitar Speaker (150 Watts, 12 in.) Technical Description
Eminence Texas Heat Specifications
Nominal Basket Diameter: 12 in., 304.8mm
Nominal Impedance: 16 ohms
Power Rating: 150 Watts
Resonance: 91Hz
Usable Frequency Range: 70Hz-5kHz
Magnet Weight: 38 oz.
Gap Height: 0.312 in., 7.92mm
Voice Coil Diameter: 2 in., 50.8mm
Mounting information
Recommended Enclosure: Sealed or Vented
Overall Diameter: 12.02 in., 305.3mm
Baffle Hole Diameter: 10.97 in., 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 in., 6.4mm
Mounting Holes B.C. D.: 11.63 in., 295.4mm
Depth: 5.1 inches, 130mm
Net Weight: 8.3 lbs., 3.8 kg
Shipping Weight: 10 lbs., 4.5 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Important Note
Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
Same Day Music is an authorized dealer of Eminence products.
Nominal Basket Diameter: 12 in., 304.8mm
Nominal Impedance: 16 ohms
Power Rating: 150 Watts
Resonance: 91Hz
Usable Frequency Range: 70Hz-5kHz
Magnet Weight: 38 oz.
Gap Height: 0.312 in., 7.92mm
Voice Coil Diameter: 2 in., 50.8mm
Mounting information
Recommended Enclosure: Sealed or Vented
Overall Diameter: 12.02 in., 305.3mm
Baffle Hole Diameter: 10.97 in., 278.6mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Mounting Holes Diameter: 0.25 in., 6.4mm
Mounting Holes B.C. D.: 11.63 in., 295.4mm
Depth: 5.1 inches, 130mm
Net Weight: 8.3 lbs., 3.8 kg
Shipping Weight: 10 lbs., 4.5 kg
Materials of Construction
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper Cone
Cone Edge Composition: Paper cone edge
Dustcap Composition: Zurette dust cap
Important Note
Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
Same Day Music is an authorized dealer of Eminence products.
