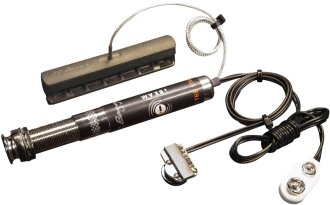

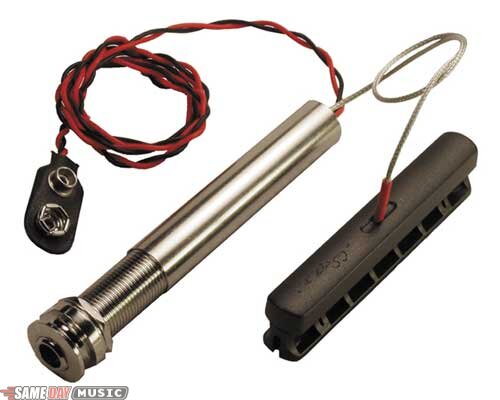

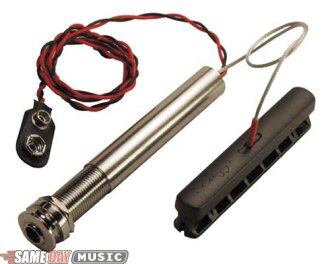

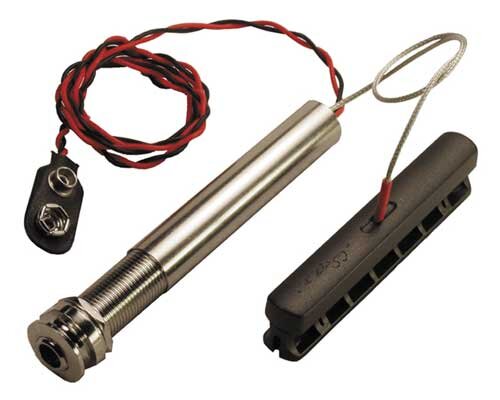

LR Baggs iBeam Active Acoustic Guitar Pickup and Preamp System
FIND SIMILAR PRODUCTS
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.
Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES
Product Description
The iBeam Active System combines a patent pending bridge plate transducer with an all-discrete class "A" endpin preamp that enables you to simply "plug-in-and-play". The user installable iBeam reproduces the natural tone of an acoustic guitar while maintaining perfect string balance and providing full dynamic range.
"I finally played my first gig with the iBeam, and it was magnificent. It is by far the best any acoustic has ever sounded for me in any live situation."
-Eddie Bush, Cfox endorser
The patent-pending iBeam itself is the heart of the system and weighs only 1/3rd of an ounce. This revolutionary bridge plate transducer easily sticks to the bridge plate on the inside of the guitar and does not affect the acoustic tone of the guitar in any way. The iBeam is microphonic enough to hear the rich (but correct) texture of finger squeak and top tapping, but is resistant to feedback and gives you excellent amplified sound without a hint of piezo quack. Included with each iBeam is a placement jig that allows you to install the pickup in minutes and get the ideal placement for the transducer inside the guitar.
"The tone of the iBeam is unbelievable, or more appropriately, totally believable. Transparent, acoustic, balanced, very true to the guitar."
- Rick Rubin, Dutch's Music
The iBeam preamp is made up of class "A" discrete circuitry and built on our Stereo strapjack Plus. Pre-tuned to deliver that great LR Baggs performance from the iBeam in any situation, it is ultra-quiet and faithfully amplifies the sound and dynamics of the iBeam. There is even a second passive channel available if you would like to add a magnetic or undersaddle pickup to compliment the ibeam.
Technical Description
Weight: 107 grams w/battery
Battery Type: Single 9V
Current Consumption: .3 mA
Battery Life: 1500+ hours (alkaline)
Low Cut Filter: Fixed, 12dB/oct. @35 Hz
Input Impedance: 10 Megohms
Signal to Noise: -94dB, unweighted
Output Level: -10dB
Output Impedance: 600 ohms
Bass EQ: +/-12dB @ 100 Hz
Treble EQ: +/-12db @ 12 kHz
