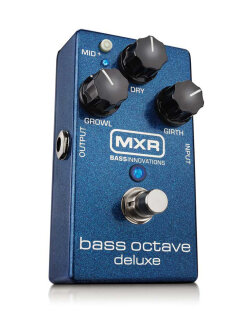

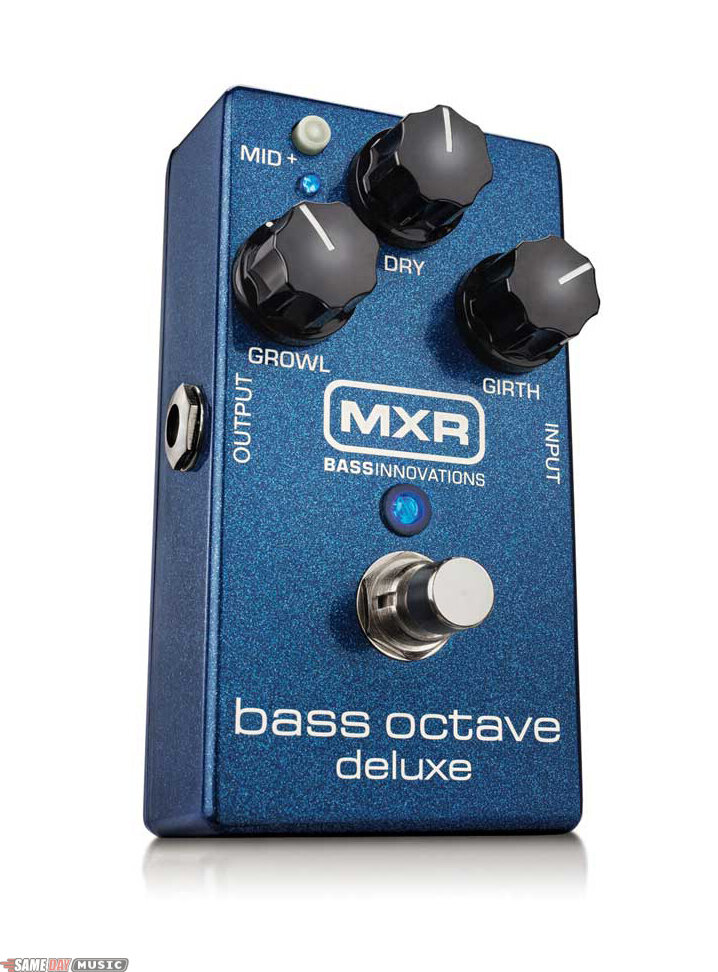

    MXR M288 Bass Octave Deluxe Effects Pedal

    Constant Headroom Technology. Two independent octave voices. Organic analog tone. True bypass.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    MXR M288 Bass Octave Deluxe Pedal Product Description

    This dual-voice bass octave pedal from MXR Bass Innovations offers the sound, functionality and tone-shaping options that you've been craving for your bass rig. Compact, lightweight and easily powered by a single 9-volt battery, the M288 Bass Octave pedal utilizes MXR's own 18-volt Constant Headroom Technology (CHT) that provides the kind of studio-performance headroom and superior tracking you've only dreamed about until now.

    - Constant Headroom Technology (CHT) for exceptional headroom and tracking

    - True Bypass

    - Organic Analog Tone

    - Two independent octave voices

    - Mid+ Switch adds a midrange boost at user selected frequency

    - Lightweight and durable aluminum housing

    - Compact size that fits any pedal board

    Use the Dry knob to mix your direct bass signal with the octave effect, or hit the Mid+ switch to add up to +14dB of internally adjustable low-mid punch (400Hz) or midrange pop (850Hz). Bass players will love the two separately processed and individually voiced octave controls--Growl (for throaty, midrange octave-below tone) and Girth (for deep and smooth octave below).

    The Bass Octave Deluxe comes in a durable, lightweight aluminum casting and has the same high-quality jacks and switches that have made MXR pedals the road-ready standard on pedal-boards around the world for over 30 years.

    Same Day Music is an authorized dealer of MXR products.

    MXR M288 Bass Octave Deluxe Technical Description

    Input Impedance: 1 Mohm (Effect On)

    Bypass: True Bypass

    Signal to Noise: 94dBV A-weighted (Vref 1V RMS)

    Output Impedance: 600 ohms

    Octave Frequency Bandpass: 8Hz-46Hz, -3dB

    Trigger Threshold: 70dBV @ 100Hz

    Dry Output Control: -infinity/+2.5dB (MID+ out)

    Dry Output Response: 20Hz to 20 kHz, +0/-1dB, -3dB @10Hz

    MID+ Switch: Dry Signal Midrange Boost
    - 400Hz or 850Hz, Internally Selectable
    - +4dB to +14dB, Internally Adjustable

    Girth Control: -infinity/+1dB @ 100Hz

    Growl Control: -infinity/+6dB @ 100Hz

    Power Requirement:
    - Standard 9-volt battery
    - 9VDC adapter with 5.5mm x 2.1mm positive barrel & negative center

    Current Draw: 14mA

    Same Day Music is an authorized dealer of MXR products.
    Shipping Weights and Dimensions
    Shipping Weight: 2 lbs
    Shipping Dimensions: 6 x 4 x 3 in
