Product Description

Studio microphone with Retro look. Warm sound, optimized for vocal recordings. Uses the capsule of the legendary M 49 and U 47. Cardioid polar pattern. Set includes elastic suspension.

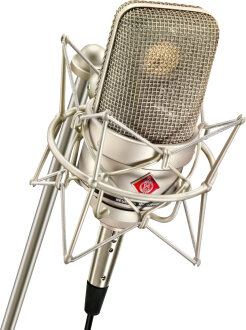

The TLM 49 is a large-diaphragm studio microphone with a cardioid directional characteristic and a warm sound which is especially optimized for vocal performance. It is supplied as a set, with an elastic suspension.

The design is inspired by that of the legendary M 49 and M 50 microphones of the 1950s. Naturally the TLM 49 has the typical Neumann fine matte nickel finish. The "sound design" is also oriented toward that of the M 49 and the U 47.

By combining its retro look with proven Neumann transformerless circuit technology, this microphone ensures low self-noise and the use of high gain levels.

Applications
During the development phase, the sound was adjusted in extensive practical tests, so as to make the TLM 49 ideal particularly for vocal and speech recording. However, in addition, it is also suitable for instrumental applications in professional production studios and demanding home recordings.

Polar pattern
The large-diaphragm capsule of the TLM 49 provides a cardioid directional characteristic with a tendency toward supercardioid, due to the special capsule construction. Following the example of the M 49, high frequencies are more directional. The capsule diameter is 34 mm.

The front of the microphone is indicated by the red Neumann logo on the microphone body. The capsule is oriented so that the microphone is addressed from the front.

Acoustic features
The TLM 49 uses the famous K 47 capsule, which was also used in the M 49 and the U 47. The capsule has a linear frequency response up to the upper mid-range. Above 2 kHz there is a gentle presence boost up to 3 dB.

The capsule is enclosed by a large microphone headgrille, which is acoustically very open and is hence neutral with regard to the sound.

Electrical features
The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit.

As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

Noise signals which affect the balanced modulation line are therefore effectively suppressed. The microphone can operate at sound pressure levels of up to 114 dB without distortion, and provides a dynamic range of 102 dB (A-weighted).

Operational safety
The entire interior structure is mounted elastically, to prevent the transmission of structure-borne noise. In addition, the capsule is mounted with a rubber shock mount.

Due to the wide frequency response, the TLM 49 can also transmit extremely low-frequency signals without coloration. Of course this means that the microphone is also sensitive to noise signals such as vibration noise and wind noise in this frequency range. The TLM 49 is therefore supplied with the elastic suspension EA 3, which effectively protects the microphone from structure-borne noise. If the microphone is addressed at extremely close range, pop screen PS 15 or PS 20 a can be used in front of the microphone to provide protection against plosive sounds.

Features
Sound profile optimized for vocal performance

Pressure gradient transducer with the large-diaphragm capsule of the legendary U 47

Cardiod characteristic

Retro design

Transformerless output circuitry

Acoustically very open wire mesh headgrille

Complete set with elastic suspension

Application Hints
Vocal microphone: Lends richness, power and brilliance to the voice, while remaining balanced and transparent

Announcer's microphone for broadcasting, dubbing and voice-overs

Spot microphone and for recording e.g. strings, piano and guitar

These are just some of the most common applications. Neumann recommends additional experimentation to gain maximum use from this microphone.

Technical Description

Acoustical operating principle: Pressure gradient transducer

Directional pattern: Cardioid

Frequency range: 20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm: 12 mV/Pa

Rated impedance: 50 ohms

Rated load impedance: 1000 ohms

Equivalent noise level, CCIR: 23 dB

Equivalent noise level, A-weighted: 12 dB-A

Signal-to-noise ratio, CCIR (rel. 94 dB SPL): 71 dB

Signal-to-noise ratio, A-weighted (rel. 94 dB SPL): 82 dB

Maximum SPL for THD 0.5%: 114 dB

Maximum output voltage: 10 dBu

Dyn. range of the mic. amplifier /A-weighted, 0.5 %): 102 dB

Supply voltage (P48, IEC 61938): 48 V +/- 4 V

Current consumption (P48, IEC 61938): 3.2 mA

Matching connector: XLR 3F

Weight: 825 g

Diameter: 78 mm

Length: 165 mm

Catalog Description

Based on M 49 and U 47 mics@Large-diaphragm cardioid condenser@3dB presence boost starting at 2kHz@Includes shockmount
