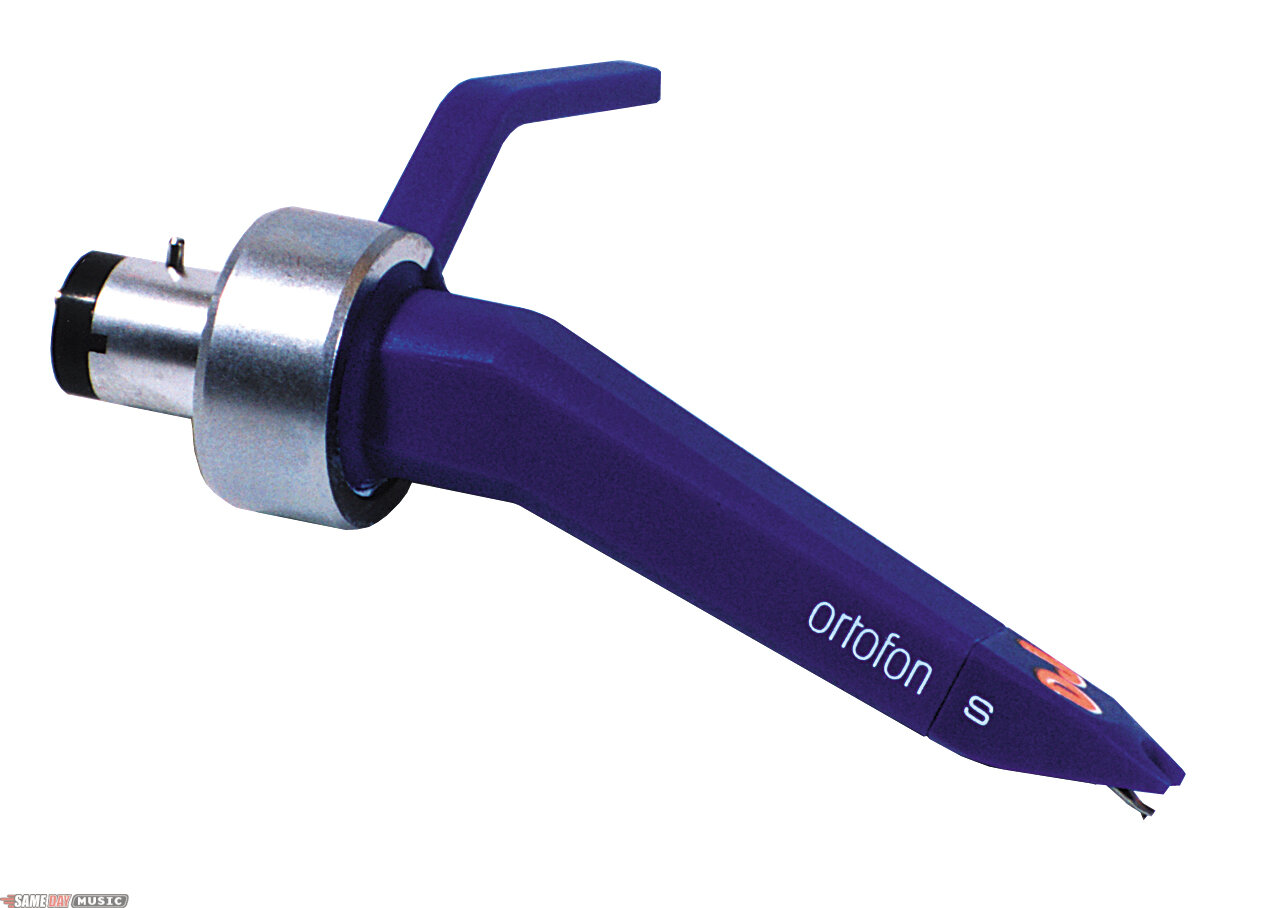

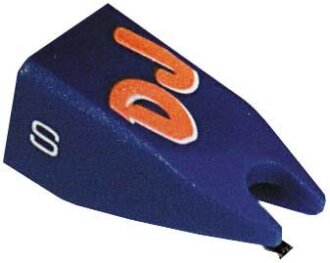

    Ortofon Concorde DJ S Spherical Stylus

    Like a reed on a clarinet, the needle on your turntable needs to be replaced often. Don't skimp - go with the Ortofon Concorde DJ S stylus. Reminder: a replacement stylus is just the needle portion, which is useful only to those already owning the cartridge.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.3 Out of 10 (6 ratings)
    *********.*

    Ortofon Concorde DJ S Stylus Product Description

    DJ's all over the world claim very high demands to their professional equipment, among which the cartridges "plays" their decisive part by realizing the scratching, back-cueing, and live artistic performance, as a big part of the show. Reliability and robustness is vital, when the cartridges night after night will have to withstand these demands in environments with extreme sound pressure and vibration.

    Scratching and back-cueing impose heavy mechanical stress on the cantilever and its rubber bearing. Therefore, the Ortofon disco cartridges are equipped with cantilevers made from aluminum tube with increased wall thickness. Special attention has also been paid to the attachment of the bearing and the design of the bearing itself. This means that rough treatment will neither damage the cartridge nor degrade its stability.

    Reminder: a replacement stylus is just the needle portion, which is useful only to those already owning the cartridge.

    Same Day Music is an authorized dealer of Ortofon products.

    Ortofon Concorde DJ S Stylus Technical Description

    Stylus type: Spherical

    Stylus tip radius: R 18 micrometers

    Equivalent stylus tip mass: 0.6 mg

    Tracking force range: 2.0-4.0 g (20-40 mN)

    Tracking force, recommended: 3.0 g (30 mN)

    Tracking angle: 20 degrees

    Internal impedance, DC resistance: 750 Ohm

    Internal inductance: 450 mH

    Recommended load resistance: 47 kOhm

    Recommended load capacitance: 200-600 pF

    Stylus Color: Blue/Blue

    Same Day Music is an authorized dealer of Ortofon products.
    Shipping Weights and Dimensions
    Shipping Dimensions: 2 x 2 x 2 in
