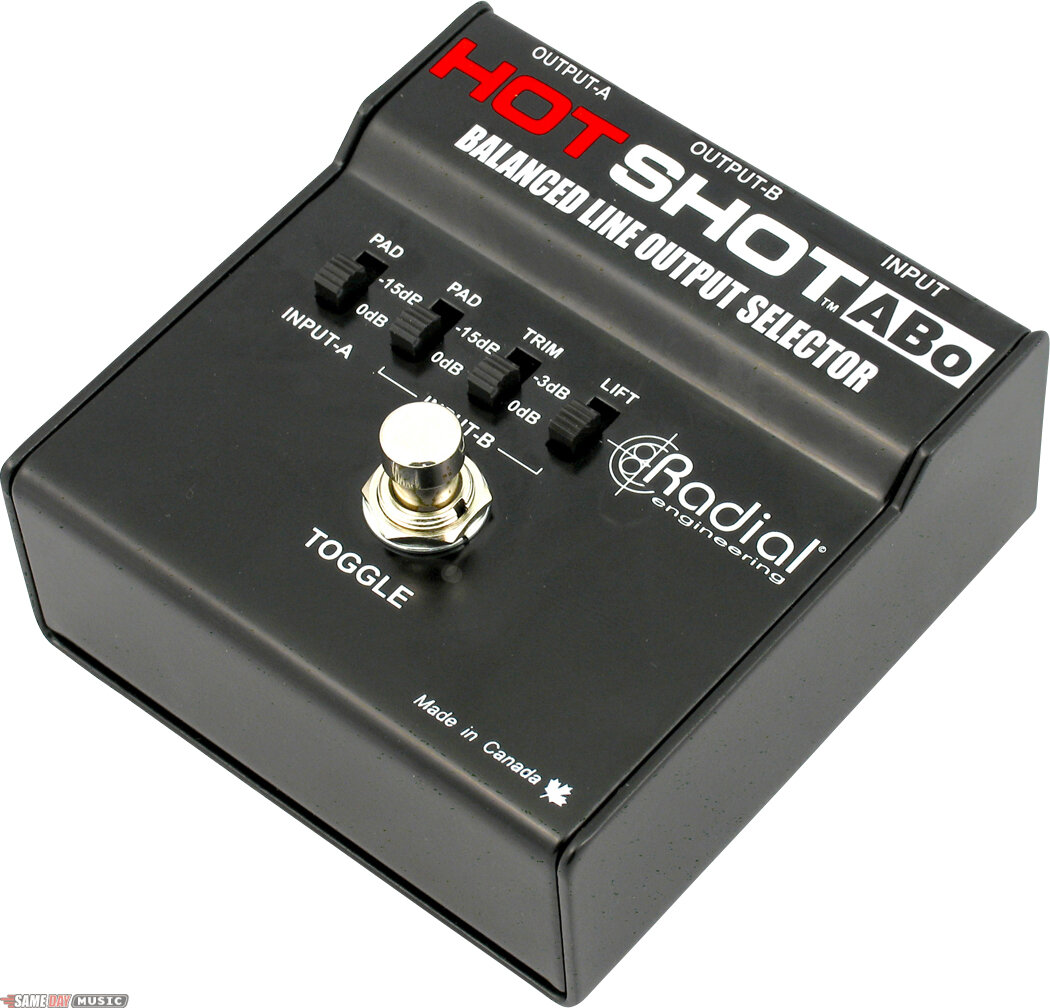

    Radial Hot Shot ABo Microphone and Line Switcher Pedal Product Description

    The HotShot ABo is a balanced signal output selector that employs a latching switch to allow one to connect a sound source to a choice of two destinations. The HotShot ABo is completely passive and therefore does not require powering of any type to make it work.

    The HotShot ABo can be used in a variety of applications including driving two channels on a mixing console for dry and wet effects routing; to divert a mic from the PA system to the monitors or intercom; for temporarily muting the signal such as when coughing; and for talkback mic control.

    Ultra-compact and extremely rugged, the HotShot is made tough for years of trouble free performance and is backed-up with a 3-year transferable warranty.

    Features:
    On-stage line output signal AB redirector

    Toggle switch for 1-push operation

    Pads allow using devices with different signal levels

    Ground lift to eliminate buzz caused by ground loops

    Heavy-duty construction, switches and components

    Select Between Effects or Dry
    For live performances, selecting between 2 channels on a mixer, the ABo provides a great way for vocalists to use a dry or effects-free mic channel to speak with the audience and a wet channel with reverb and echo when singing.

    Communicate on Stage
    Use the ABo to switch from "main to monitor only" and perform the same tasks as the HotShot DM1 only this time, with a latching foot switch. Ideal for front-of-house engineers to connect to the monitor desk engineer and connect to the band through the stage monitors when needed. Also works great in the studio!

    Select Between "On" and "Mute"
    In its simplest form, use the ABo as a mute foot switch to allow the entertainer to clear his throat or cough without the offensive sounds reaching the audience. Furthermore, by reducing the number of mics that are "active" on stage, one can significantly reduce the spill and leakage; the most common cause of stage feedback.

    Select Between Effect Channels
    The ABo can be used to toggle between normal and "weird" or modulated sound effects by routing the effects insert jack of the mixer through the ABo and a second channel.

    HotShot(TM) ABo In Detail
    The HotShot ABo is a multi-purpose performance tool that is designed to allow simple on-off and diversion control over signal management. It is outfitted with various features such as grounding options and level adjustments to conform to a wide variety of applications.

    Critical to its performance is the rugged 14 gauge steel construction and ultra-compact footprint. This enables the HotShot ABo to be used in the most demanding professional applications while assuring years of trouble free performance.

    Warning -- Possibility of electrical shock hazard exists. Please read the warnings in the user manual before attempting to connect amplifiers to this device.

    Same Day Music is an authorized dealer of Radial products.

    Radial Hot Shot ABo Microphone and Line Switcher Pedal Technical Description

    Circuit Type: Passive true-bypass

    Inputs: XLR-F

    Outputs: XLR-M x 2

    Output Pads:
    Output-A: -15dB switch
    Output-B: -15dB switch, -6dB 'trim' switch

    Ground Lift: LIFT switch - Input-B pin-1

    Footswitch: Heavy-duty high-cycle

    Construction: 14 gauge steel, baked enamel finish

    Size: 3.6 in. w x 3.75 in. d x 2 in. h (92 x 99 x 51mm)

    Weight: 1.1 lbs. (0.5 kg)

    Warranty: Radial 3-year limited warranty

    Same Day Music is an authorized dealer of Radial products.
    Shipping Weights and Dimensions
    Shipping Weight: 2 lbs
    Shipping Dimensions: 7 x 4 x 3 in
