Product Description

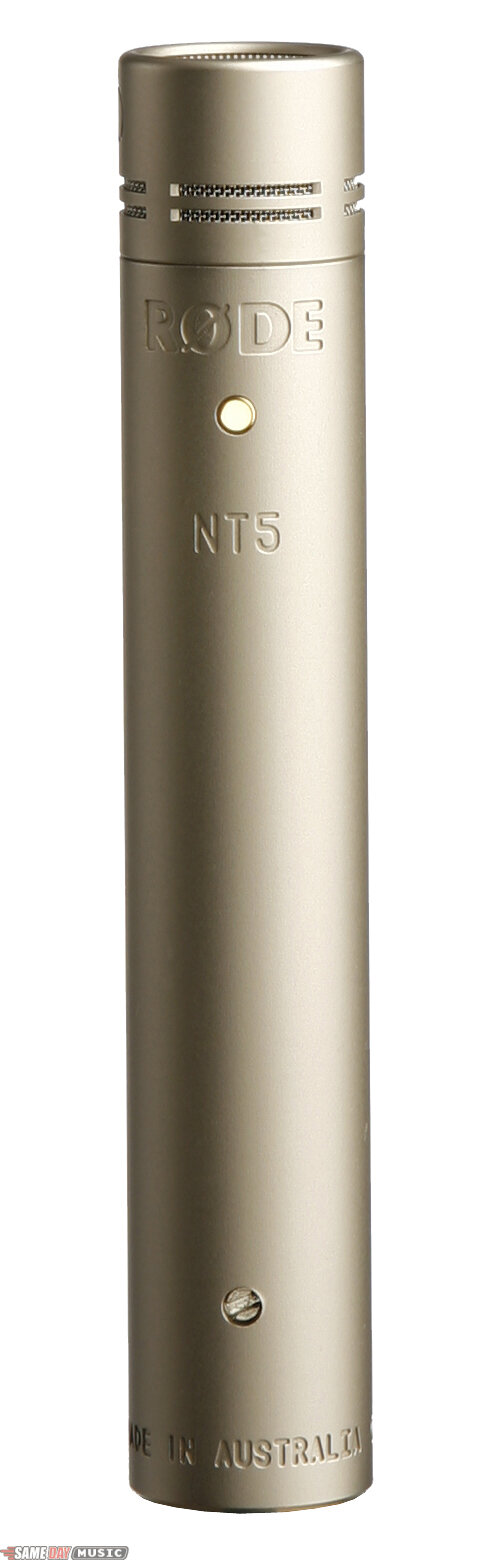

The Rode NT5 is a condenser microphone specifically designed for instruments including guitar, saxophone, drums, violin, and many others. Its design allows for tight positioning where small mics are most useful. They come as a matched pair complete in a case with a stand mounts and windscreens.

Technical Description

Acoustic Principle: Externally polarized single diaphragm condenser transducer

Capsule Size: 0.5 in. (13 mm)

Active Electronics: JFET Impedance converter with bipolar output buffer

Directional Response: Cardioid

Frequency Response: 20Hz to 20kHz

Sensitivity: -38 dB re 1v/Pa +/- 2 dB equivalent to 12mV/Pa where 1 Pa = 94dBSPL

Equivalent Noise: <16 dBSPL, (A-weighted per IEC268-15)

Maximum Output: +13.9 dBu @ 1% THD into 1k ohm

Dynamic Range: >128 dB

Maximum SPL: 143 dB @ 1% THD into 1k ohm

Signal to Noise: 78dB

Power Requirements: 4 mA, P48 Supply (38V?52V) 2 mA, P24 Supply (20V-26V) The microphone operates in accordance with the above specifications to a minimum of 18V. It will operate with some performance degradation below 18V.)

Packed Weight: 1.8 kg (Mic only 100g)

Catalog Description

Matched pair of 1/2"-diaphragm cardioid condensers@Includes windscreens, stand mounts, and case
