Product Description

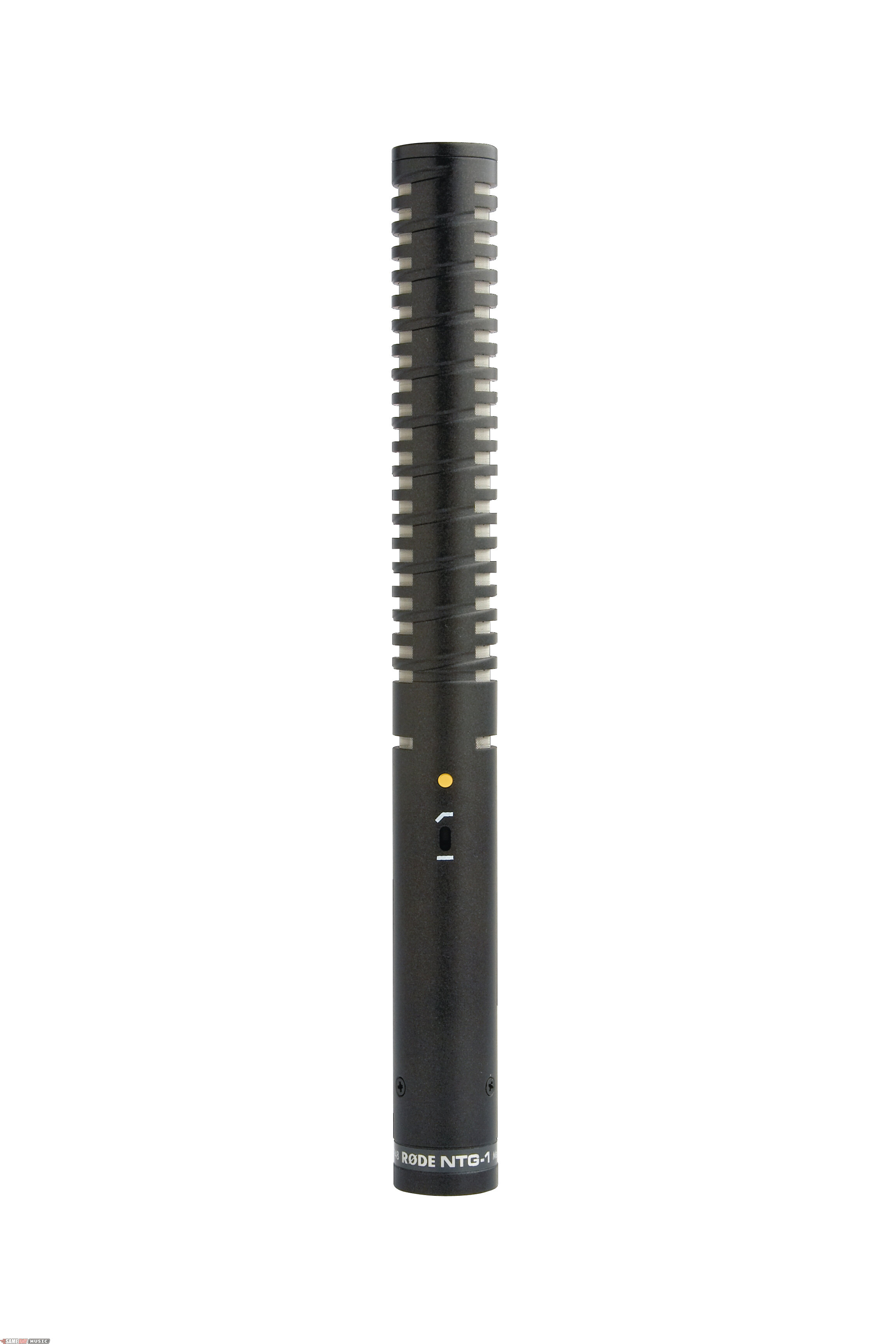

The new RODE NTG-1 is a lightweight condenser shotgun microphone, specifically designed for professional applications within the film, video, television, voice-over and ENG industries.

The NTG-1 provides an electronically balanced output stage and operates on 48 V to the P48 standard. The NTG-1 offers wide bandwidth and a controlled polar response coupled with low noise SMT electronics. The NTG-1 is extremely lightweight making it ideal for mounting directly to video cameras (with optional accessories) or a Boom pole.

The NTG-1 comes complete with mount and windshield. The supplied windscreen effectively suppresses wind noise when recording outdoors in moderate conditions. Optional accessories are available for more demanding applications.

Features
Broadcast sound quality.

Low noise circuitry.

Condenser transducer.

Rugged metal construction.

Low weight: 105 grams approx. (3 oz.).

Low handling noise.

Supplied with stand mount, zip pouch and windshield.

Designed & manufactured in Australia.

Full 2 year guarantee.

Technical Description

Operation power: The NTG-1 is designed to operate from standard P48 phantom power. The NTG-1 will operate between 44 V to 52 V applied with positive polarity to pin 2 and pin 3 via the output XLR connector.

Operation output impedance: The NTG-1 will operate satisfactorily into a load impedance as low as 1 kilohm. If a load below this is used, the output signal level will be reduced. The NTG-1s output is balanced between pin 2 (hot), pin 3 (cold) and pin 1 is ground.

Acoustic principle: Line plus Gradient.

Directional pattern: Super-Cardioid.

Frequency range: 20 Hz ~ 20 kHz selectable HPF @ 80 Hz/12 dB octave

Output impedance: 50 ohms

Signal noise ratio din iec 651: 76 dB (1 kHz rel. 1 Pa; per IEC651, IEC268-15)

Equvalent noise: 18 dB SPL (per IEC651, IEC268-15)

Maximum spl: 139 dB (@ 1% THD into 1 kÙ)

Sensitivity: -36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB (at 1 kHz in free field into open circuit)

Dynamic range din iec 651: 121 dB (per IEC651, IEC268-15)

Power supply voltage: P48 Phantom, 44 V to 52 V

Current consumption: 3.5 mA

Output connection: 3 pin XLR, balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)

Weight with battery: 105 g approx. (3.37 oz.)

Dimensions width: 217mm

Dimensions depth: 22mm

Dimensions height: 22mm
