Product Description

Vocal Microphone, Cardioid Condenser, 50 Hz to 18 kHz

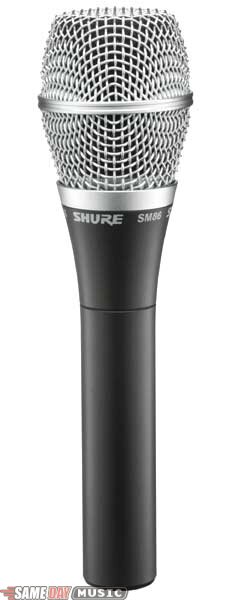

The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering studio-quality sound. The tailored frequency response of the SM86 reproduces vocals with clarity. A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in 3-point shock mount minimizes handling noise, and a 2-stage pop filter reduces wind and breath "pop" noise. The SM86 is an excellent selection for use with both stage monitors and personal in-ear monitors.

Features
Condenser cartridge for studio quality sound

Tailored frequency response for a clear reproduction of vocals

Rugged construction withstands the rigors of touring sound

Cardioid polar pattern minimizes unwanted background noise

Excellent choice for stage monitors and personal in-ear monitors

Built-in 3-point shock mount minimizes handling noise

2-stage "pop" filter reduces wind and breath noise

Technical Description

Transducer Type: Condenser (electret bias)

Frequency Response: 50 to 18,000 Hz

Polar Pattern: Cardioid

Output Impedance:
150 Ohms at 1 kHz
Recommended minimum load impedance: 600 Ohms

Sensitivity (at 1,000 Hz)
Open Circuit Voltage: 50 dBV/Pa (3.15 mV)

Output Clipping Level
1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)

Maximum SPL (at 1,000 Hz)
1000 ? load (1% THD): 147 dB

Self-Noise: 23 dB typical, A-weighted

Dynamic Range (1000 ?): 124 dB (maximum SPL to A-weighted noise level)

Signal-to-Noise Ratio: 71 dB at 94 dB SPL (IEC 651)*
*S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise A-weighted.

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.

Power: Phantom Supply Requirement 11 to 52 VDC, positive at both pins 2 and 3

Current Drain: 5.2 mA

Connector: 3?pin (XLR) professional audio

Case: Dark gray enamel-painted steel with matte-finished silver colored steel grille

Dimensions: 24 x 49 x 183 mm (.95 x 1.92 x 7.2 in.)

Net Weight: 278 grams (9.8 oz.)

Environmental Conditions:
Operating: -18 to 60 degrees C (0 to 135 degrees F) (relative humidity <90%)
Storage: -29 to 74 degrees C (20 to 165 degrees F) (relative humidity <80%)

Certification:
Eligible to bear CE Marking. Conforms to European EMC Directive 89/336/EEC. Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.

Furnished Accessories:
Break Resistant Microphone Clip A25D
Microphone Bag 26A13
5/8 in. to 3/8 in. Thread Adapter 31A1856

Optional Accessories:
Phantom Power Supply PS1A
Shock Stopper Isolation Mount A55M, A55HM
Popper Stopper Windscreen A85WS
7.6 m (25 ft.) Cable C25F

Catalog Description

Condenser mic with vocal-tailored frequency response@Cardioid polar pattern@2-stage pop filtering@Internal shock mounting
