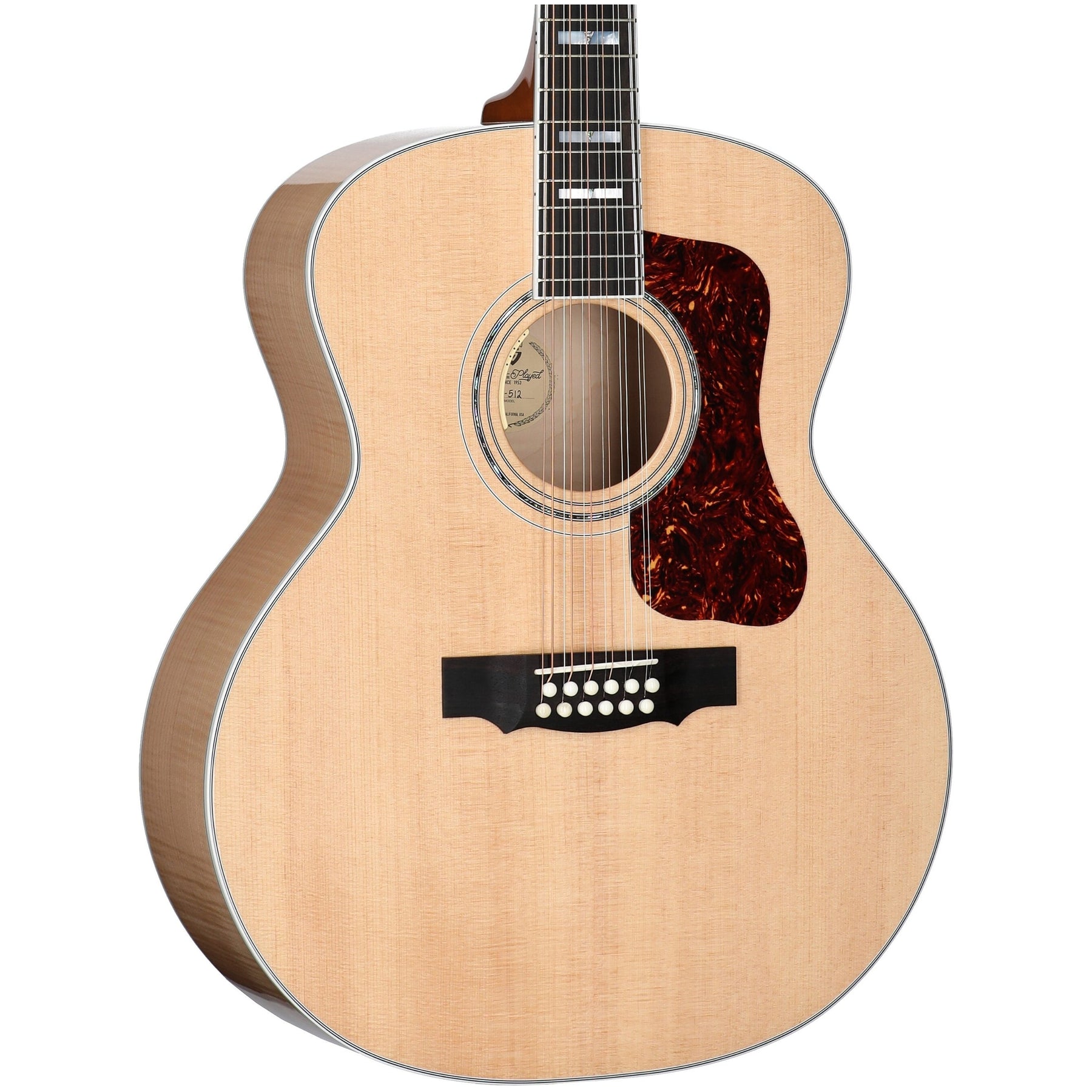

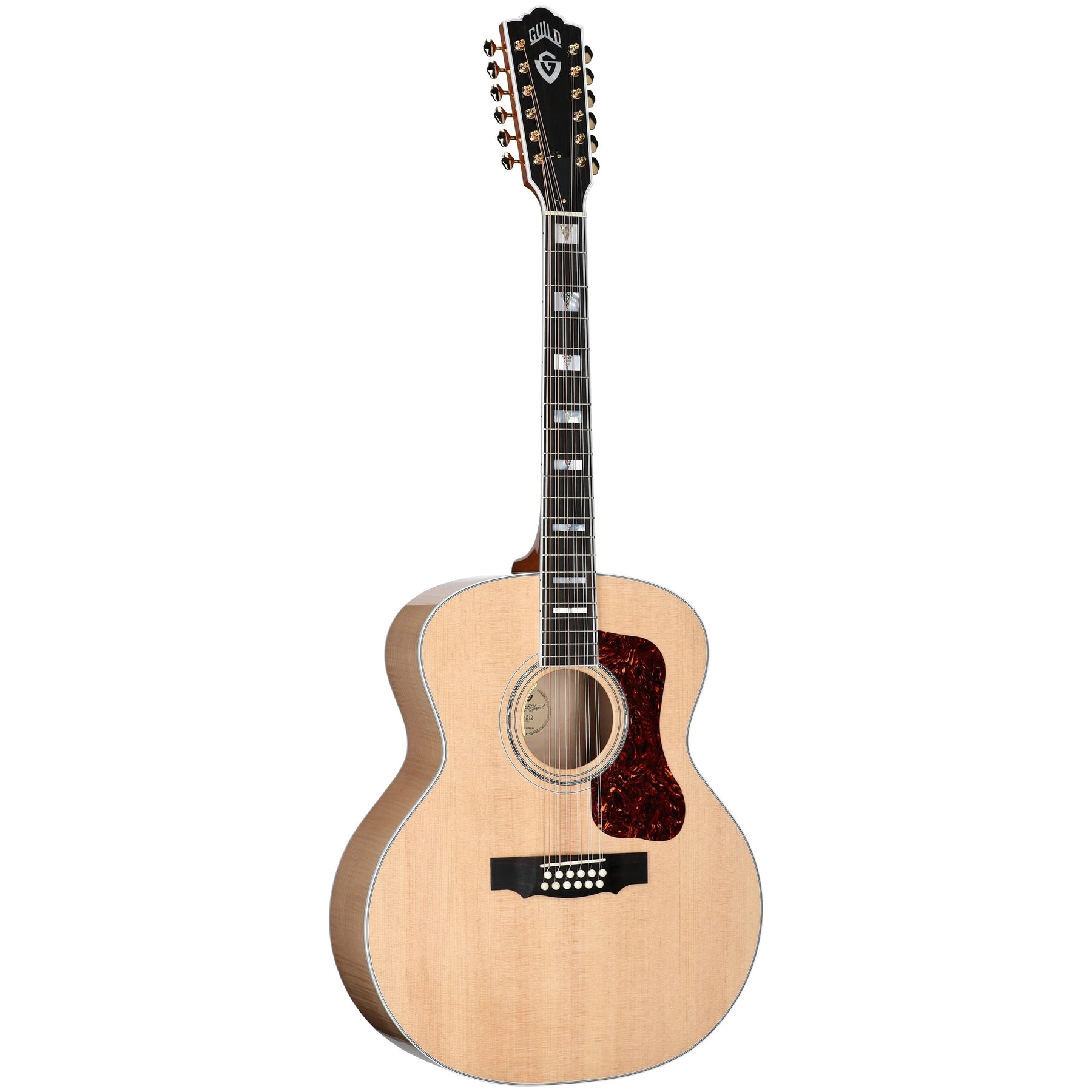

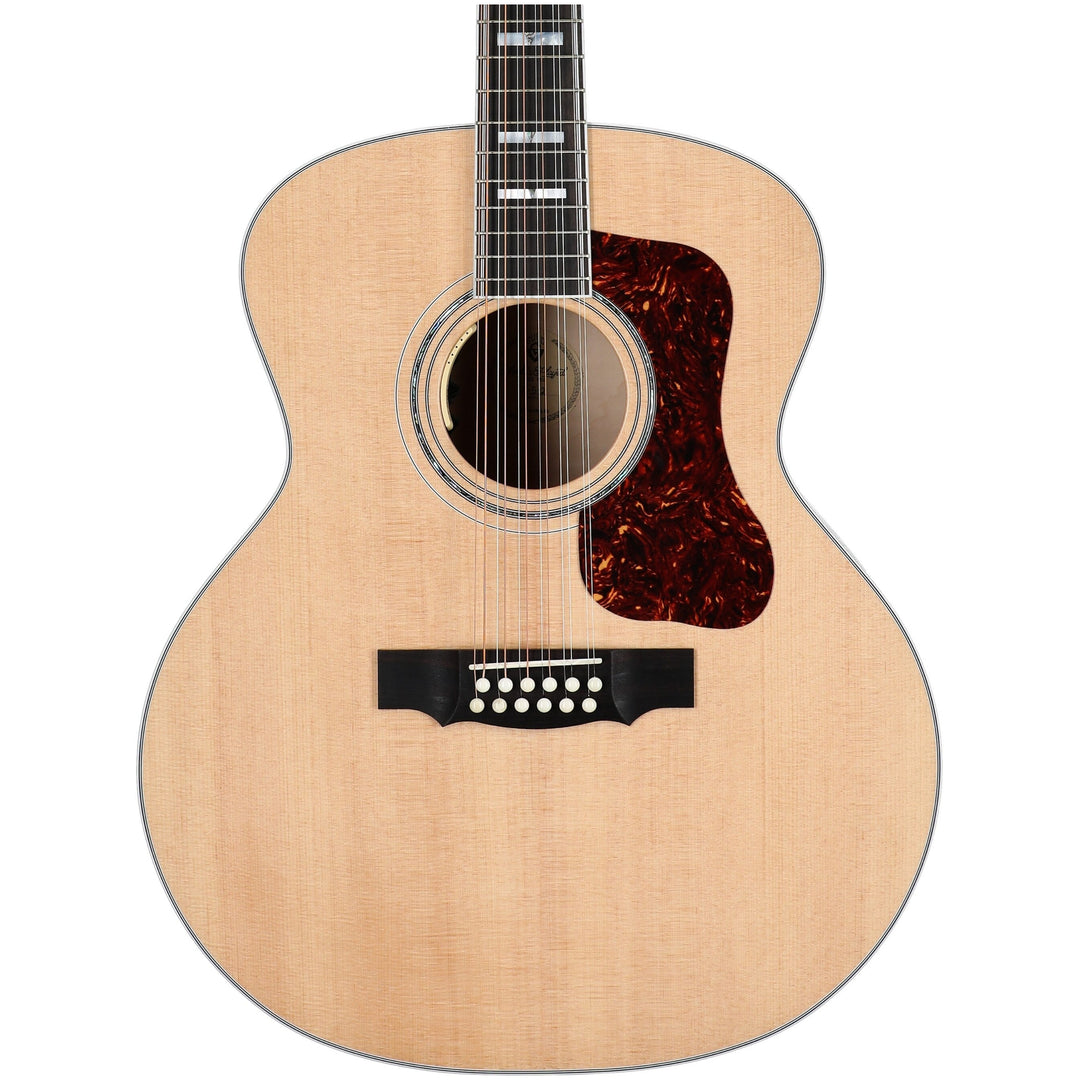

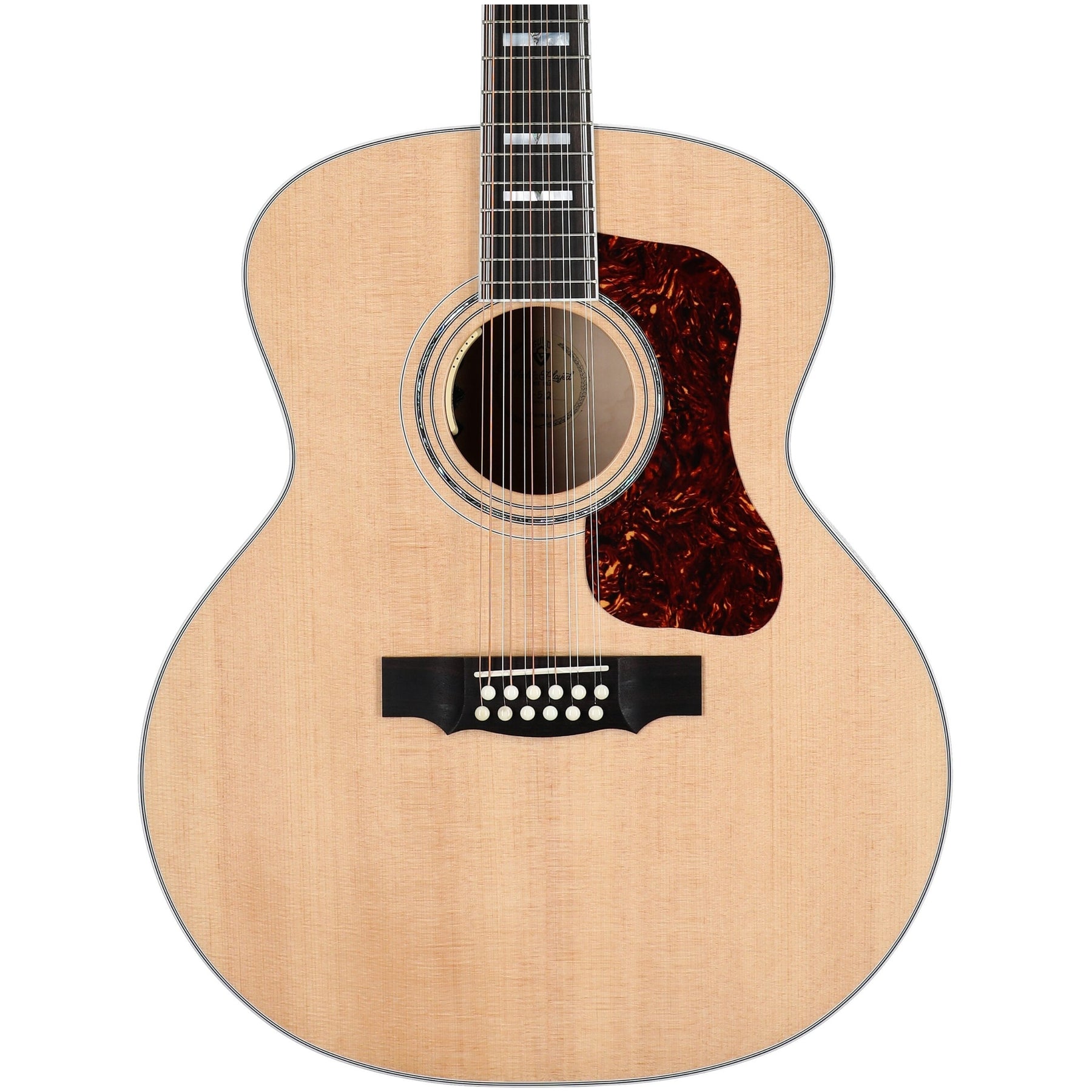

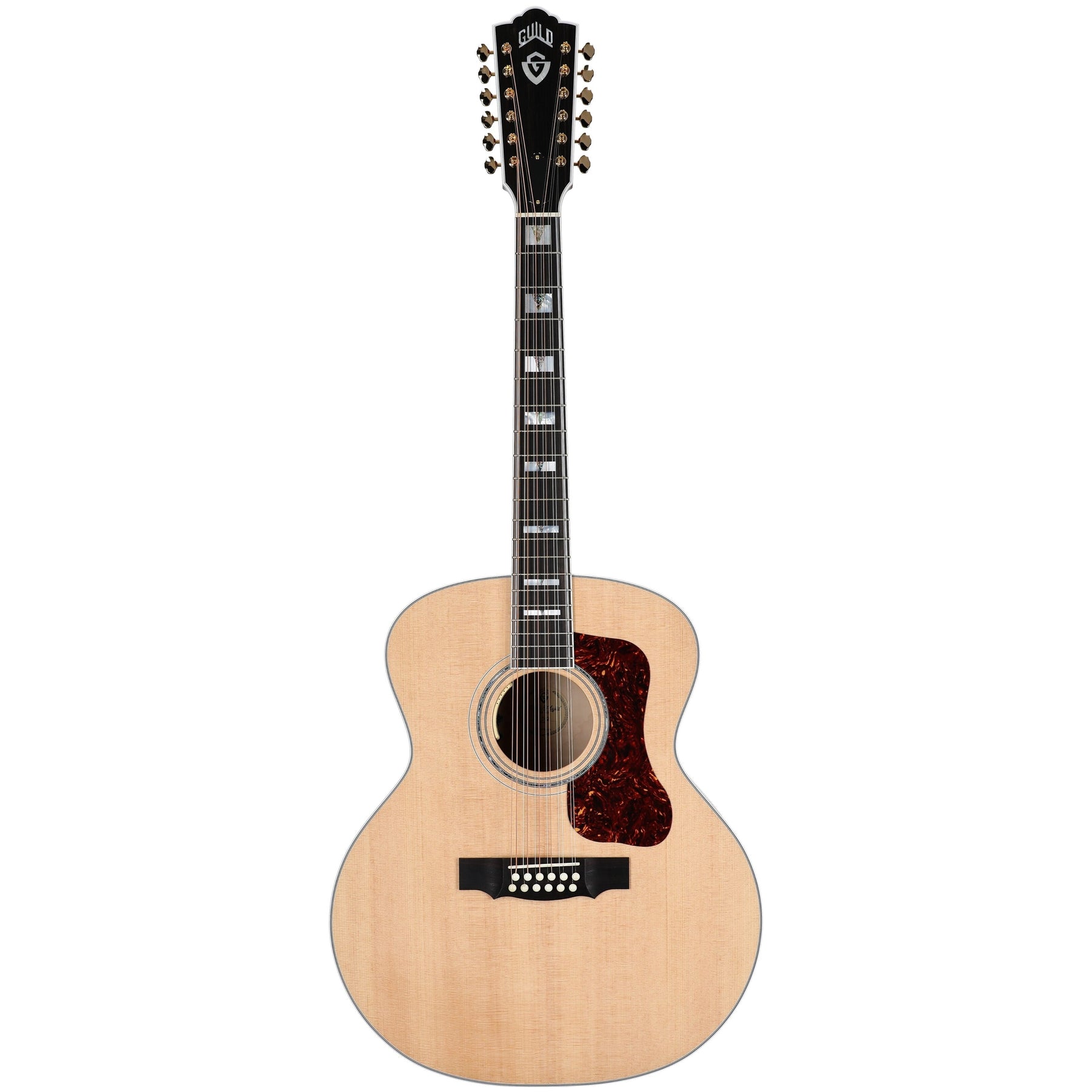

The Guild F-512E Jumbo Maple is back and better than ever. This USA-made jumbo has been a staple of the Guild line since the late 1960's. It features a tight grained solid Sitka spruce top with arched flamed maple back and flamed maple sides. Created on the same arch press that's been a part of Guild manufacturing since 1985, the F-512 Maple provides sharply focused trebles and an articulate mid-range, perfect for a full, centralized, harp-like sound. Braced with delicate, scalloped Adirondack spruce, this model produces the shimmering highs that players have come to expect from a Guild 12-string. Elegant cosmetic appointments include the classic Guild “V-block” inlays, gold Gotoh hardware, and a beautiful Nitrocellulose lacquer finish. Exceptional build quality and premium specifications make it a worthy heir to the historic Guild 12-string legacy. LR Baggs electronics included.
Country of Origin: USA
Body Top: Solid Sitka Spruce
Top Purfling Inlay: Black and White ABS
Bridge Material: Indian Rosewood
Saddle Material: Compensated Bone
Fingerboard Material: Ebony
Nut Material: Bone
Nut Height: 9mm
Truss Rod: Dual Action
Truss Rod Wrench: 4mm Allen Key
Neck Thickness: 9th Fret 25mm
Frets to Body: 14
Frets Total: 20
Neck Joint: Dovetail
Finish: Satin Polyurethane

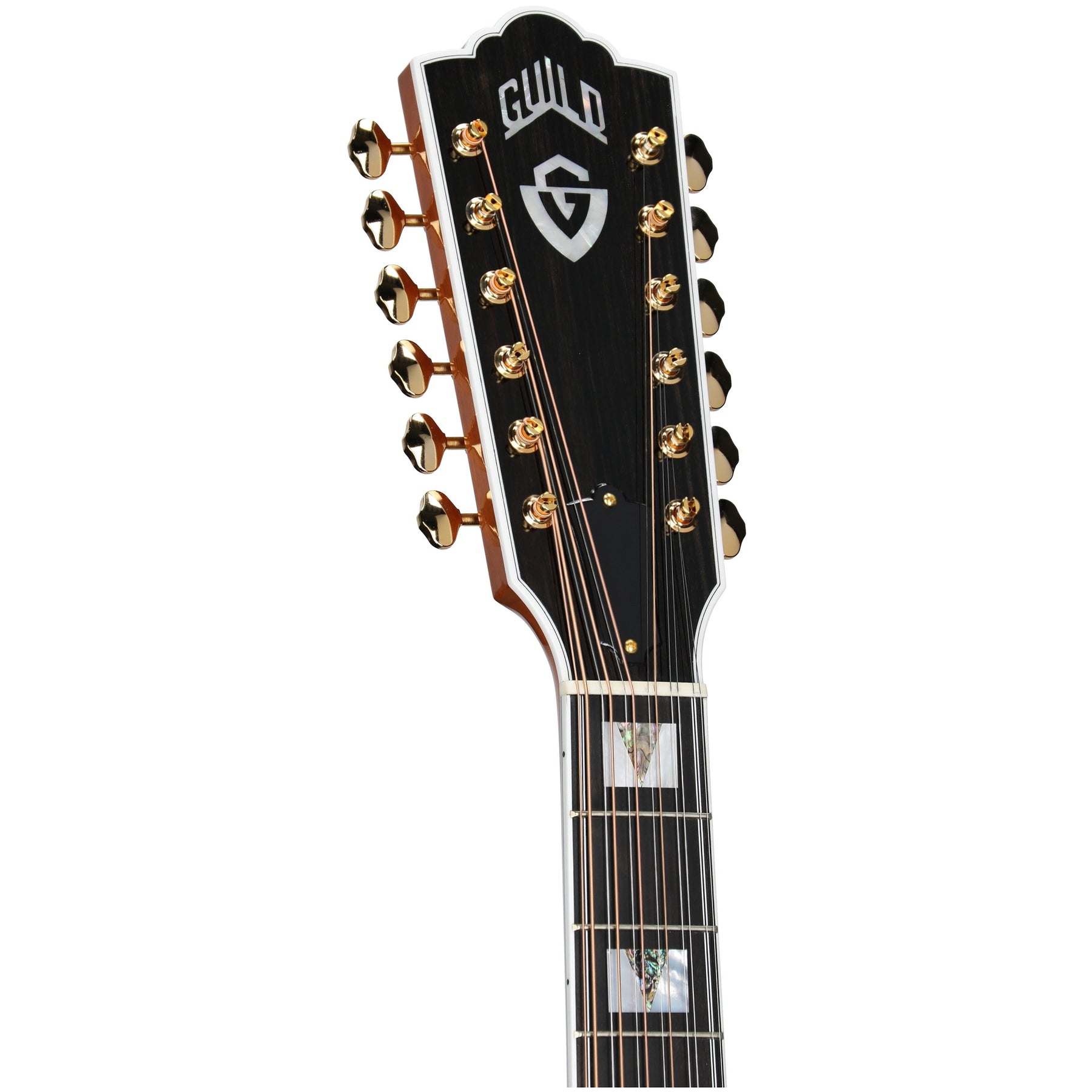

Headplate: Ebony
Top Bracing Pattern: Scalloped X
Fingerboard Radius: 12" (305mm)
Neck Shape: C Shape
Endpin: Endpin Jack
Body Depth Upper Bout: 3 3/4" (95mm)
Body Shape: Jumbo
Upper Bout Width: 12 1/2" (318mm)
Lower Bout Width: 17 1/4" (438mm)
Body Length: 20 1/2" (521mm)
Nut Width: 1 7/8" (48mm)
Overall Length: 44" (1118mm)
Bridge String Spacing: 2 3/8" (60mm)
Tuning Machine Ratio: 20:01
Scale Length: 25 5/8" (651mm)
Soundhole Diameter: 4" (100mm)
Bracing: Scalloped Adirondack Spruce
Neck Material: Mahogany with a Walnut Center Strip
Finish - Back and Sides: Gloss Nitrocellulose
Finish – Top: Gloss Nitrocellulose
Finish – Neck: Gloss Nitrocellulose
Rosette: Abalone and ABS Ring
Fingerboard Inlays: Mother-Of-Pearl and Abalone V-Blocks
Tuning Machine Buttons: Gold Butterbean
Hardware Finish / Plating: Gold Plated

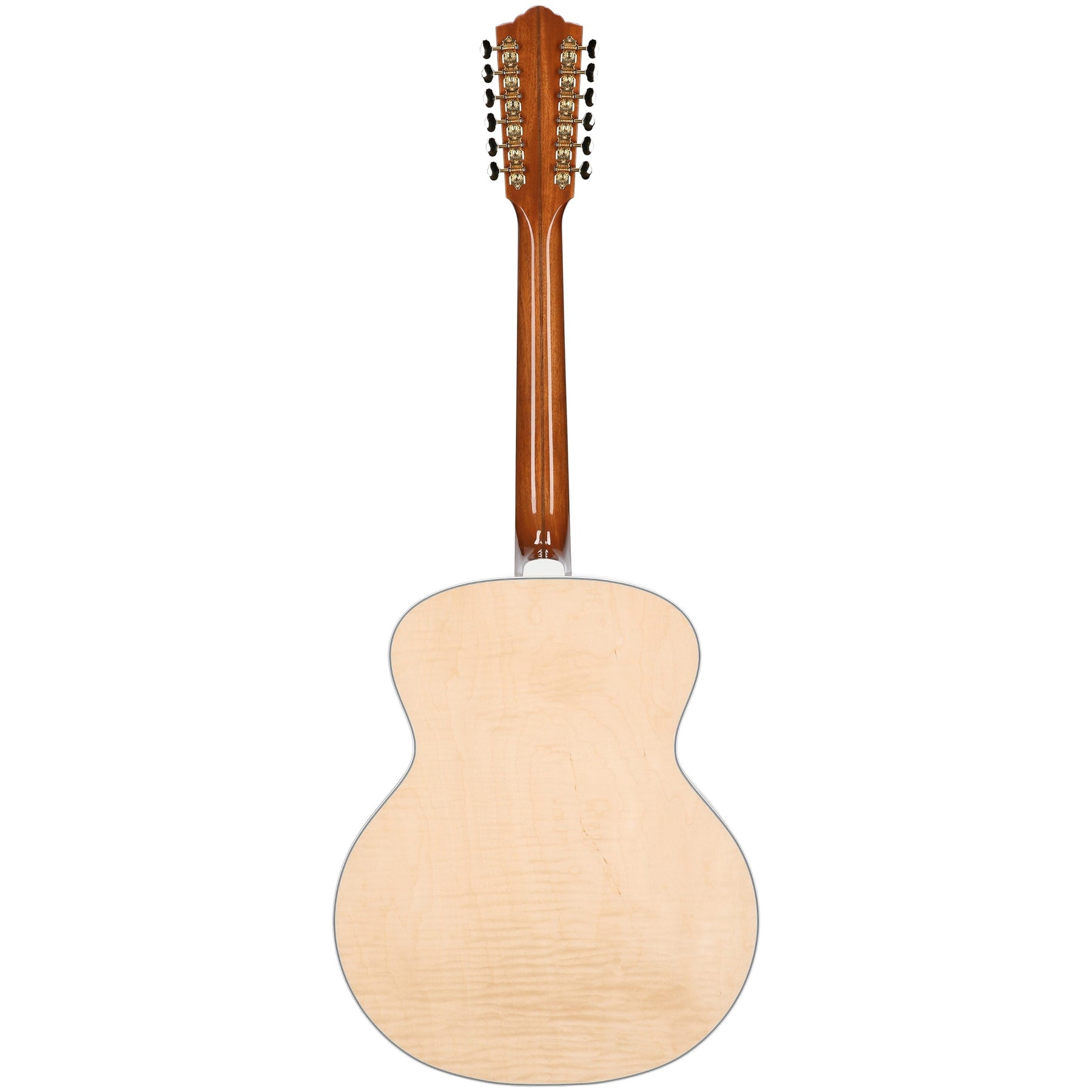

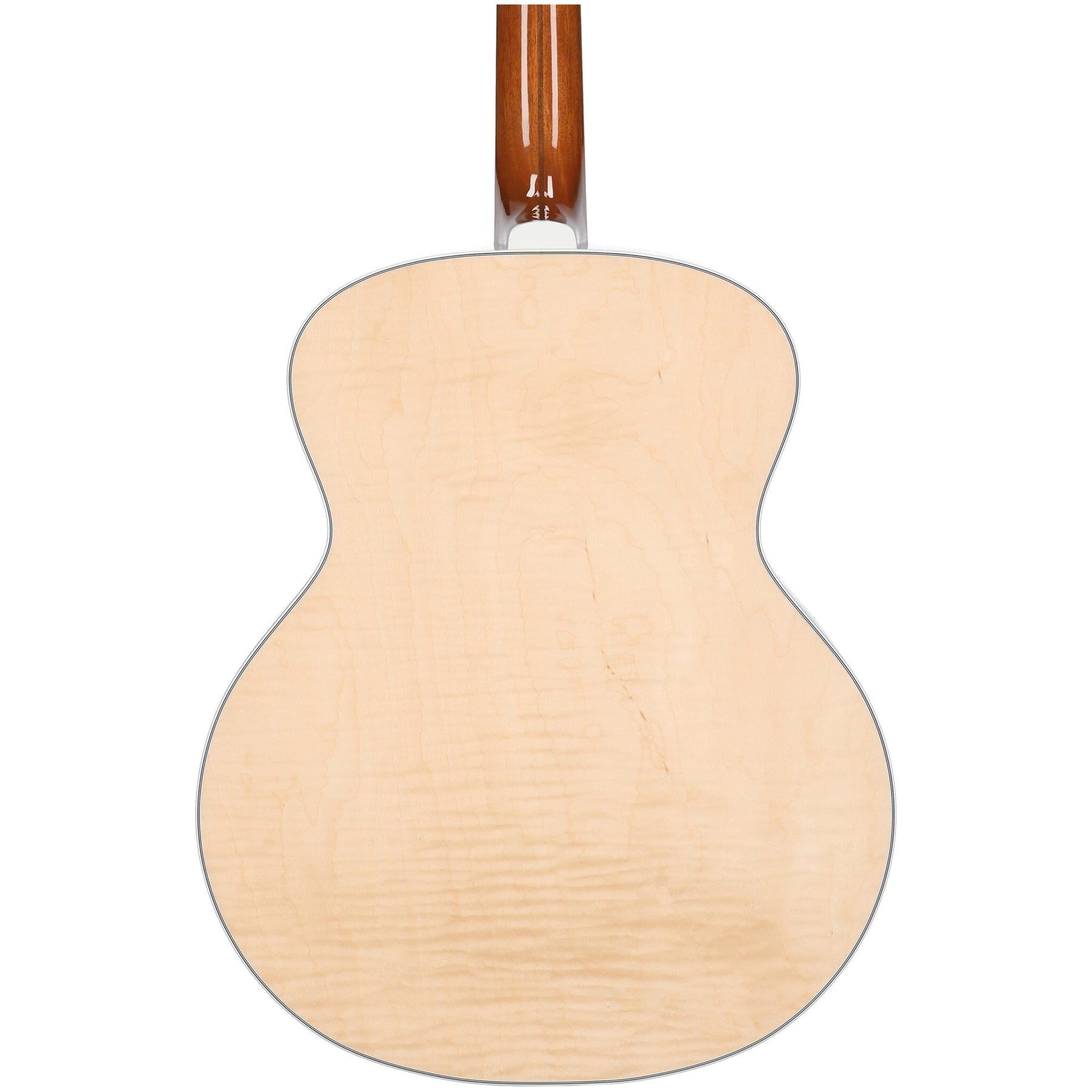

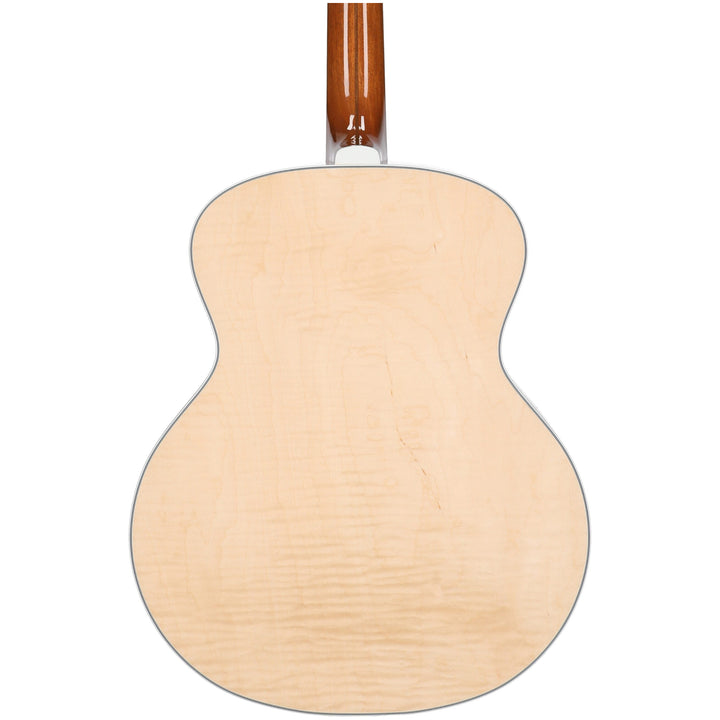

Body Back: Arched Flamed Maple
Body Depth Lower Bout: 4 3/4" (119mm)
Soundboard Thickness: 1/8" (3mm)
Bridge Pins: Bone
Rosette Width: 1/4" (7mm)
Body Binding: White and Black ABS
Nut String Spacing: 1 5/8" (41mm)

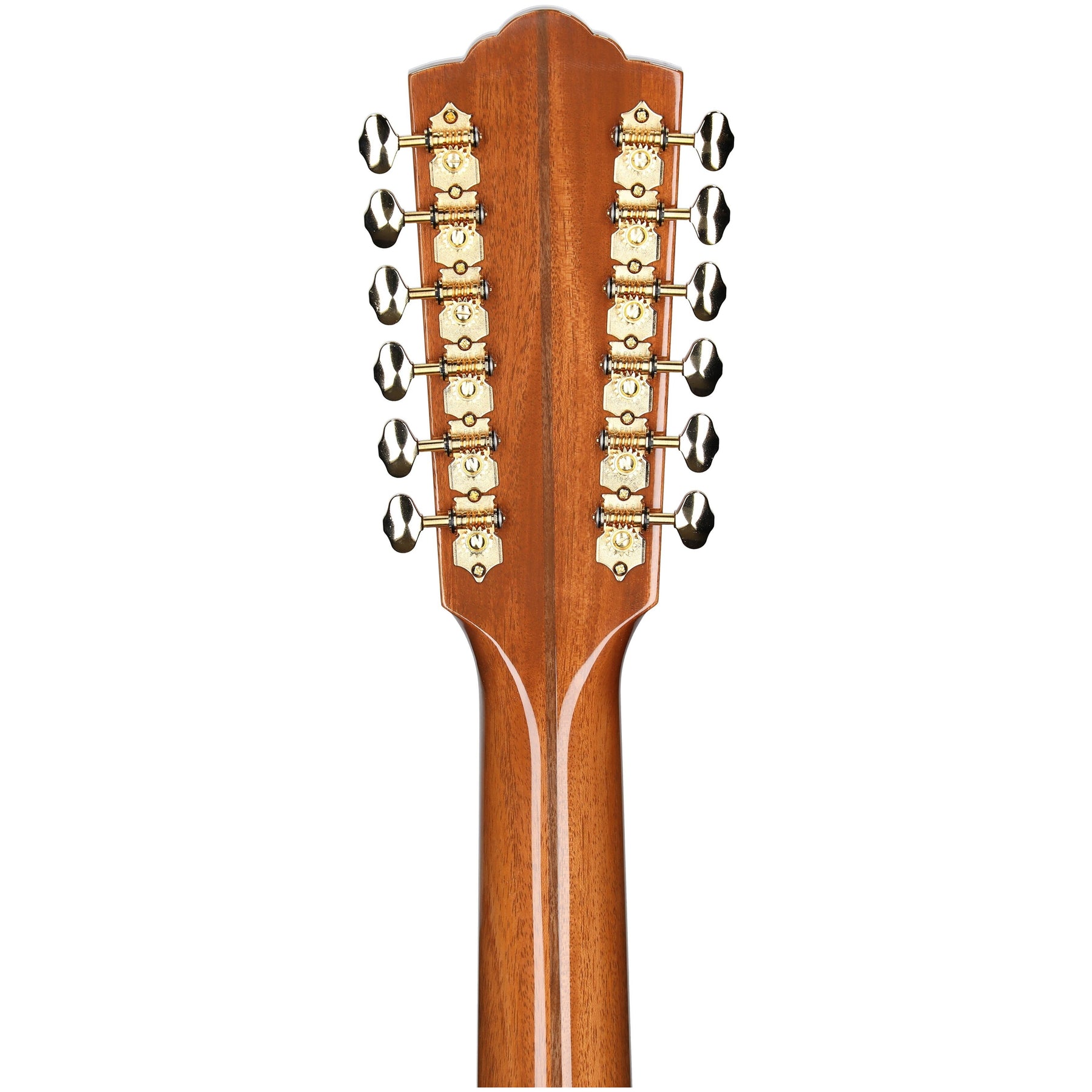

Tuning Machines: Gotoh SE701 Open Gear in Gold
Neck Thickness: 1st Fret 23mm
Nut Thickness: 4.3mm
Electronics: LR Baggs Anthem
Body Sides: Flamed Maple
Endpin (or jack) Diameter: 1/2" jack
Bridge Pin Specs: 1T size - 3-degree taper - .210" underskirt diameter
Pickguard: Nitrocellulose
Middle Pickup: None
