    Electro-Voice ZX190 Loudspeaker, 2-Way, 400 W

    Extremely smooth, wide frequency response. Unpowered. Requires separate power amplifier.
    Product Rated 8.7 Out of 10 (9 ratings)
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 20C-L5TJ

    Web Item #ELVZX190

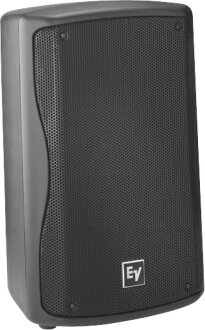

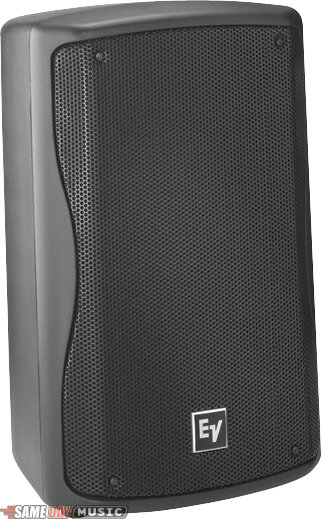

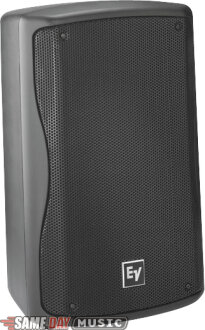

    ElectroVoice ZX190 2-Way Loudspeaker
    View Larger Image

    More Resources

    Manuals and Documents: Brochure Engineering Sheet
    Electro-Voice Warranty: Electro Voice Warranty ´╗┐Electro-Voice offers the following warranties: 5 years on speakers; 3 years on electronics; and 2 years on microphones. If you have additional warranty questions, please call the manufacturer at 800-289-0096
    In Stock | Will Ship Mon
    • 2 Day: $14
    • Overnight: $48
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Electro-Voice ZX1 2-Way Passive, Unpowered Loudspeaker (400 Watts, 1x8") Product Description

    You need a speaker that can reproduce every note, every inspirational word and every nuance of your style. Introducing the ZX1. Compact, lightweight, yet high performance, the ZX1 is a reflection of the needs of the high-speed, time-crunched, high-tech lifestyle you lead. Its versatility is matched only by your imagination, and its look is pure beauty. So while your audience may not be fully aware of why you sound incredible, you'll know it's because you chose the very best...

    The ZX1 offers a wide array of mounting options including an integrated pole mount and removable rubber feet that hide M8 mounting studs. Dual NL4 connectors and an ergonomic molded carrying slot make the ZX1 perfect for portable music, AV rental and mobile audio applications.

    The ZX1 shines in monitor wedge applications, especially where the reproduction of vocal frequencies is crucial. Its asymmetrical cabinet design means you simply have to put the ZX1 on its side to achieve a 45-degree monitor angle. And with the ability to rotate its 90x50-degree horn, you can adjust the dispersion pattern to suit your unique application.


    - Extremely smooth, wide frequency response
    - Attractive, clean design with full grille
    - EV8L 8" high-output LF transducer
    - DH2005 1" exit true compression driver
    - 90 degree x 50 degree coverage pattern
    - Rotatable horn design for adjustable dispersion
    - Integral monitor angle on enclosure
    - 200W continuous, 800W peak power handling
    - High sensitivity, 125 dB maximum SPL
    - Built-in pole mount
    - Integral handle pocket for easy carrying

    Note: Unpowered speaker, requires separate power amplifier.

    Same Day Music is an authorized dealer of Electro-Voice products.

    Electro-Voice ZX190 Technical Description

    - Chassis Size: 8" (203.2 mm)
    - Input Connections: Parallel Neutrik NL4
    - Speaker Type: Full-range, Mid-High, Two-Way, Wedges
    - Frequency Response (-3 dB): 60 - 20000 Hz
    - Frequency Response (-10 dB): 48 - 20000 Hz
    - Internal Crossover: Yes
    - Recommended High-Pass Frequency: 40 Hz
    - Sensitivity 1 W/1 m: 94 dB
    - Max. SPL/1m (calc): 123 dB
    - Coverage (Nominal -6 dB) H: 90* Rotatable
    - Coverage (Nominal -6 dB) V: 50* Rotatable
    - Rotatable Horn: Yes
    - System Power Handling (Continuous/Program/Peak): 200//800 Watts
    - LF Transducer: 8-inch EV8L
    - HF Transducer: 1.25-inch DH2005
    - Crossover Frequency: 1700 Hz
    - Nominal Impedance (Passive): 8 Ohms
    - Minimum Impedance: 6 Ohms
    - Enclosure Material: High Impact Polystyrene
    - Grill: Polyester Powder Coated, 18GA Galvanized Steel
    - Mounting: 1-3/8" (35 mm) pole-mount socket
    - Height: 17.99" (457 mm)
    - Width: 11.1" (282 mm)
    - Depth: 10.39" (264 mm)
    - Weight Net: 8.4 kg (18.52 lbs)

    Same Day Music is an authorized dealer of Electro-Voice products.
    Shipping Weights and Dimensions
    Shipping Weight: 21 lbs
    Shipping Dimensions: 19 x 13 x 12 in
