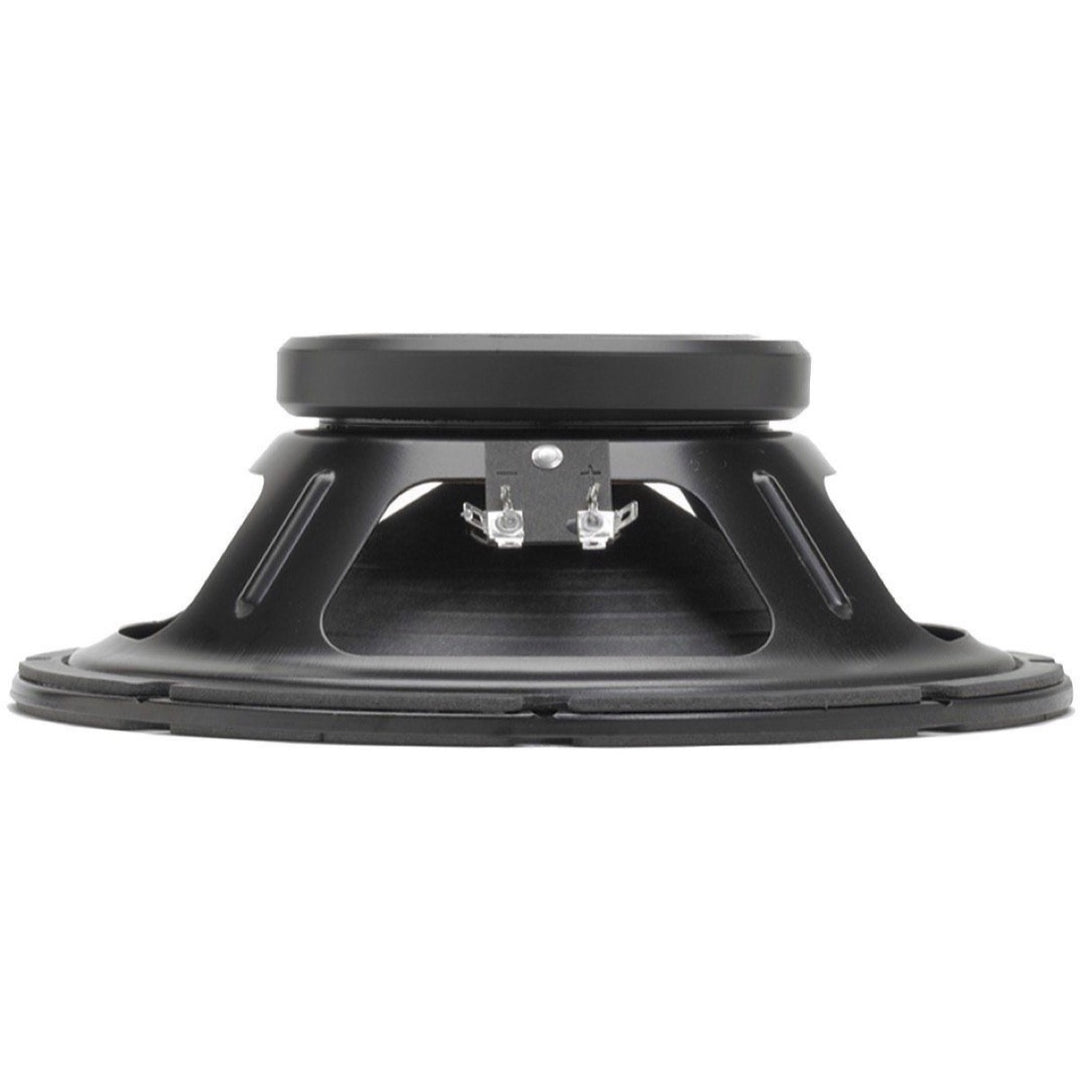

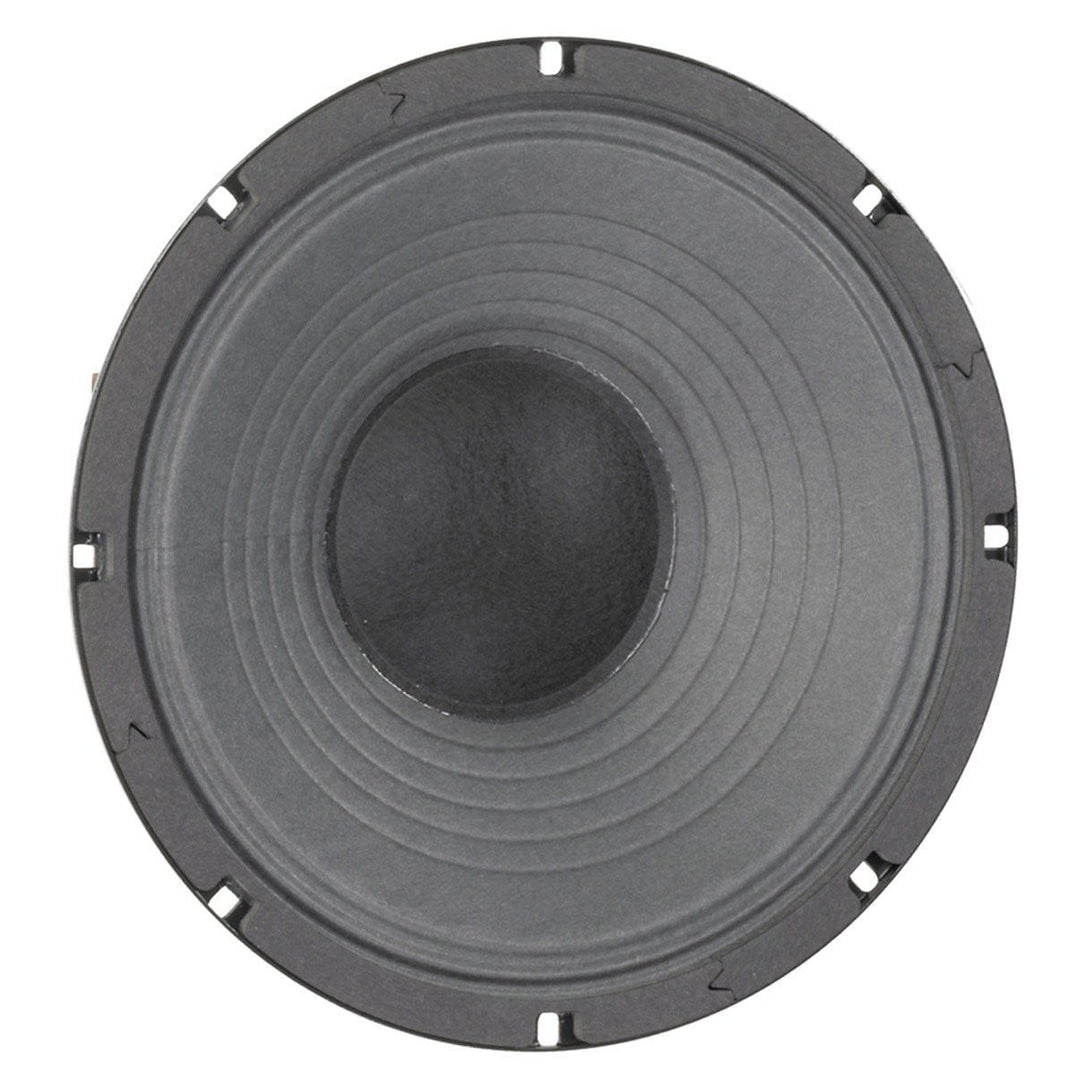

Eminence Legend 105 Guitar Speaker (75 Watts, 10 Inch), 8 Ohms

Loading ...
This item is Sold Out!
Free -Day Shipping
Only Left!
Preorder Today
More on the Way
Get it by
if you order within
Get it  if you order in   Price:
Get Faster Shipping!
Shipping to a different Zip Code?
Check the delivery time for another location!
Call to order!

EMI LG1058

Product Details

When you need a little extra power, this model is perfect as a general replacement. It has been and continues to be original equipment in many of your favorites. Lots of punch and crunch!This is Greg Martin's favorite 10 in. He has them loaded in his Super Reverb! He suggests using this speaker in recording studios as well as in 4X10 cabinets for live gigs. Greg describes the tone as very 'jangly' with a meaty low-end and lots of honk. It would be a perfect speaker for anyone playing Country, Blues, or Rockabilly. This speaker works well with Rickenbacker guitars, a Super Reverb or a Super.

Show More
Show Less
Impedance: 8 ohms or 16 ohms
- Power Rating: 75Wrms
- Voice Coil Diameter: 1.5 in., 38.1mm
- Coil Material: Copper
- Flat/Round Coil Wire: Round
- Coil Former Material: Kapton
- Basket Type: Stamped Steel
- Cone Surround Material: Paper
- Dust Cap Material: Felt
- Magnet Weight: 16oz.
- Usable Bandwidth (Fs to -3dB): 100Hz - 6kHz
- SPL: 99dB
- Mounting Information
- Nominal Basket Diameter: 10.11 in., 256.8mm
- Baffle Hole Diameter: 9.13 in., 231.8mm
- Mounting Holes Diameter: 0.225 in., 5.7mm
- Mounting Holes B.C.D.: 9.6 in., 243.8mm
- Depth: 4.1 in., 103mm
- Shipping Weight: 5.6 lbs., 2.6 kg.
- Thiele-Small Parameters
- Resonant Frequency (fs): 97Hz
- Impedance (Re): 7.49 ohms
- Coil Inductance (Le): 0.56mH
- Electromagnetic Q (Qes): 1.21
- Mechanical Q (Qms): 17.78
- Total Q (Qts): 1.13
- Compliance Equivalent Volume (Vas): 26.36 liters, 0.93 cu. ft
- Peak Diaphragm Displacement Volume (Vd): 0cc
- Mechanical Compliance of Suspension (Cms): 0.16mm/N
- BL Product (BL): 8.0 T-M
- Diaphragm Mass inc. Airload (Mms)
- Equiv. Resistance of Mechanical: 17 grams
- Suspension Loss (Rms): 0.58N*sec/M
- Efficiency Bandwidth Product (EBP): 80
- Voice Coil Overhang (Xmax): 0mm
- Surface Area of Cone (Sd): 344.9cm2
- Impedance at Resonance (Zmax): 118 Ohms
- Important Note
- Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
- (Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
- Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
