Overview

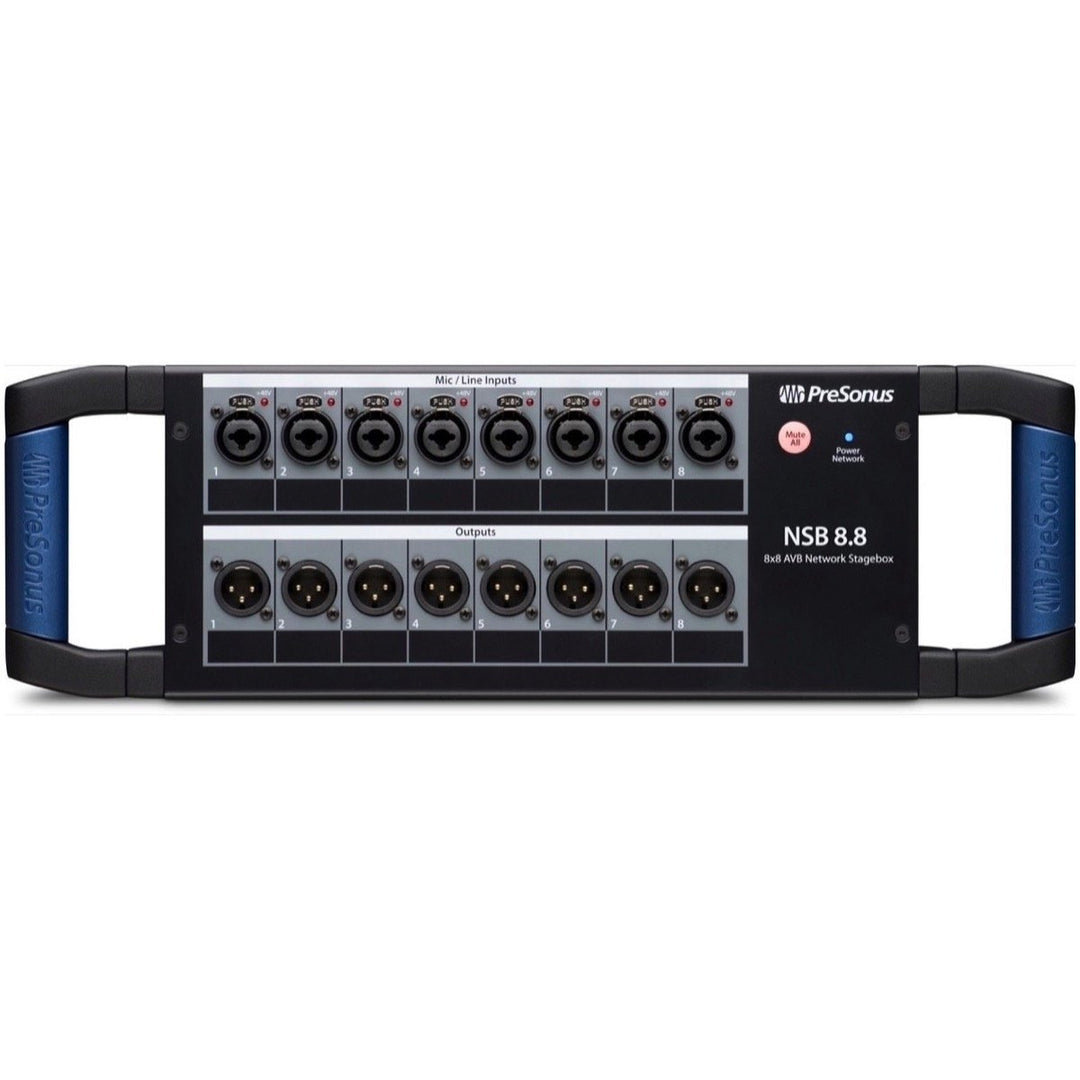

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 8.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.Features:
- Rugged stage box enclosure
- 8 locking, combo mic/line inputs
- 8 remote-controllable XMAX preamps
- Gain compensation for shared inputs
- 8 locking XLR line outputs
- 2 AVB ports with locking XLR Ethernet jacks
- 16x8 AVB (8 direct input channels + 8 gain compensated input channels)
- Mute All button

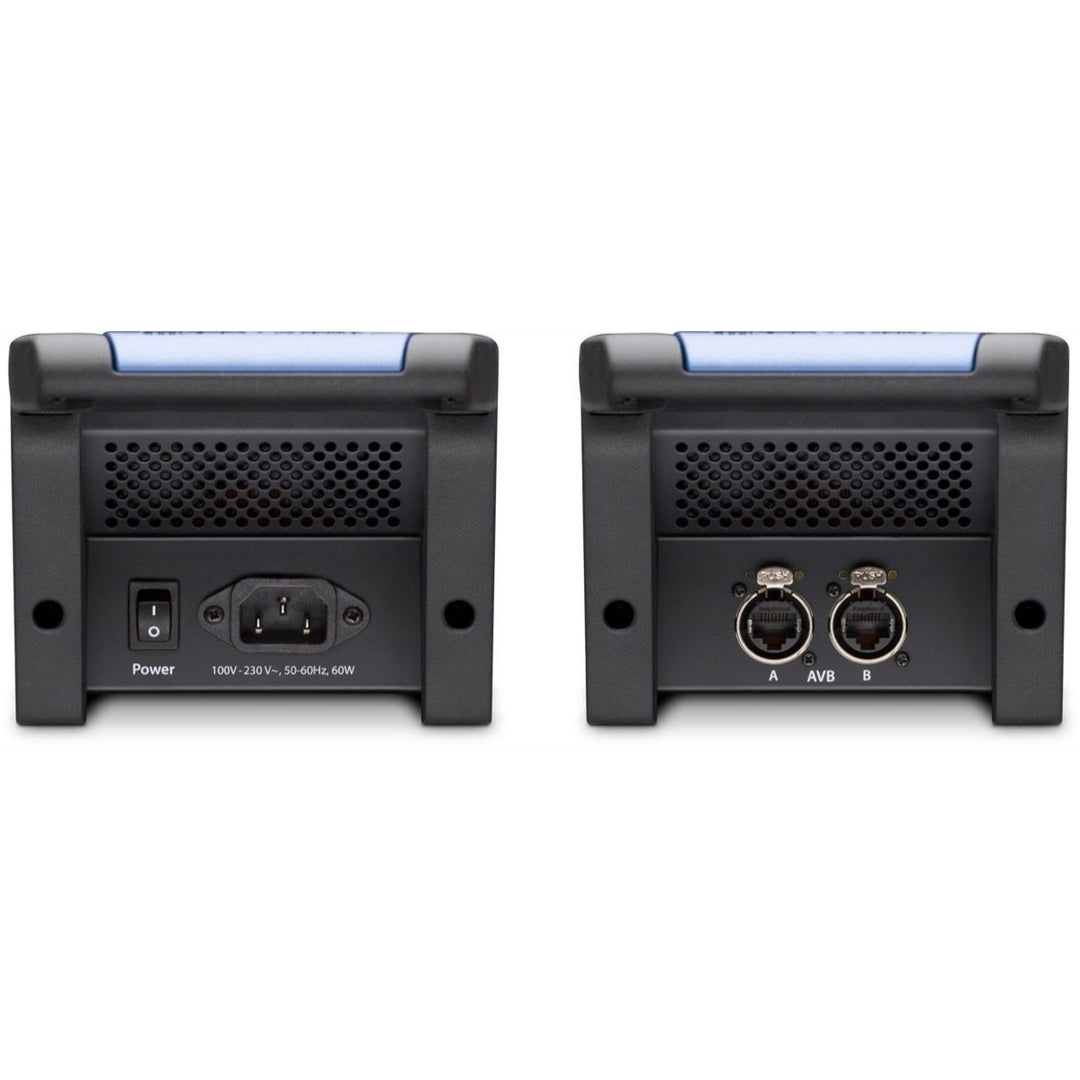

- Locking IEC power jack
- +48V indicators
- Easy setup and control from StudioLive Series III mixers and free PreSonus UC Surface software
- Optional rack ears
