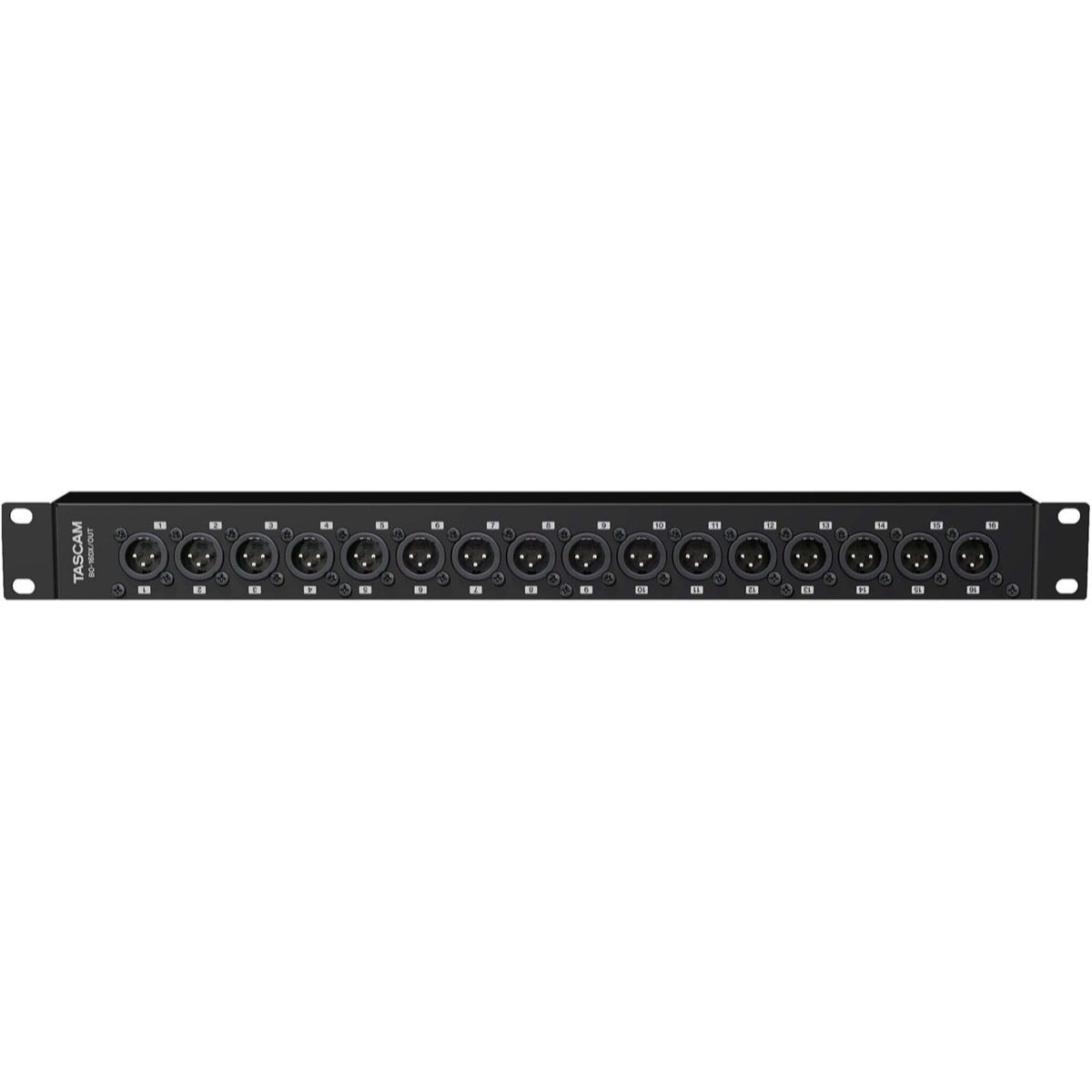

Tascam BO-16DX/OUT D-Sub to XLR Output Adapter
$319.00
Skip to product information
![]()
- The ideal I/O solution for the TASCAM ML-16D and ML-32DDesigned as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems. The 25-pin D-sub connectors on the BO-16DX/OUT employ TASCAM pin assignments that are compliant with AES59-2012.
- Flexible mounting optionsThe BO-16DX/OUT is designed to mount in either of two 180-degree rotations to simplify cabling runs and avoid unnecessary twisting of D-Sub connector cables within the rack.Regardless direction of the unit, approximately half inch (13mm) of space is available above each connector, allowing easy access to a release lever of the XLR socket when stacked.The unit can be mounted in a rack facing forward or backward by changing the direction that the rack-mount ears are attached to it. The rackmount ears can also be removed when using the unit placed on a tabletop.Thanks to the compact size, including a depth of only 1.8" (45mm) behind the rackmout ears, this breakout box can even be mounted in the back of a rack case.Mounting in the front of a rack case for use as a patch bay is also possible.
Tascam BO-16DX/OUT D-Sub to XLR Output Adapter
We're sorry, but this item is unavailable.
Limited inventory! Only in stock.
New item! Preorder now. Risk free, arriving soon.
On backorder! Reserve now. Risk free, arriving soon.
Call to Order
Notify Me
×
Item added to your cart
×
Alternate Options
Details
- The ideal I/O solution for the TASCAM ML-16D and ML-32DDesigned as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems. The 25-pin D-sub connectors on the BO-16DX/OUT employ TASCAM pin assignments that are compliant with AES59-2012.
- Flexible mounting optionsThe BO-16DX/OUT is designed to mount in either of two 180-degree rotations to simplify cabling runs and avoid unnecessary twisting of D-Sub connector cables within the rack.Regardless direction of the unit, approximately half inch (13mm) of space is available above each connector, allowing easy access to a release lever of the XLR socket when stacked.The unit can be mounted in a rack facing forward or backward by changing the direction that the rack-mount ears are attached to it. The rackmount ears can also be removed when using the unit placed on a tabletop.Thanks to the compact size, including a depth of only 1.8" (45mm) behind the rackmout ears, this breakout box can even be mounted in the back of a rack case.Mounting in the front of a rack case for use as a patch bay is also possible.
