Hosa CBT-500 Cable Tester
$89.95
Skip to product information
![]()

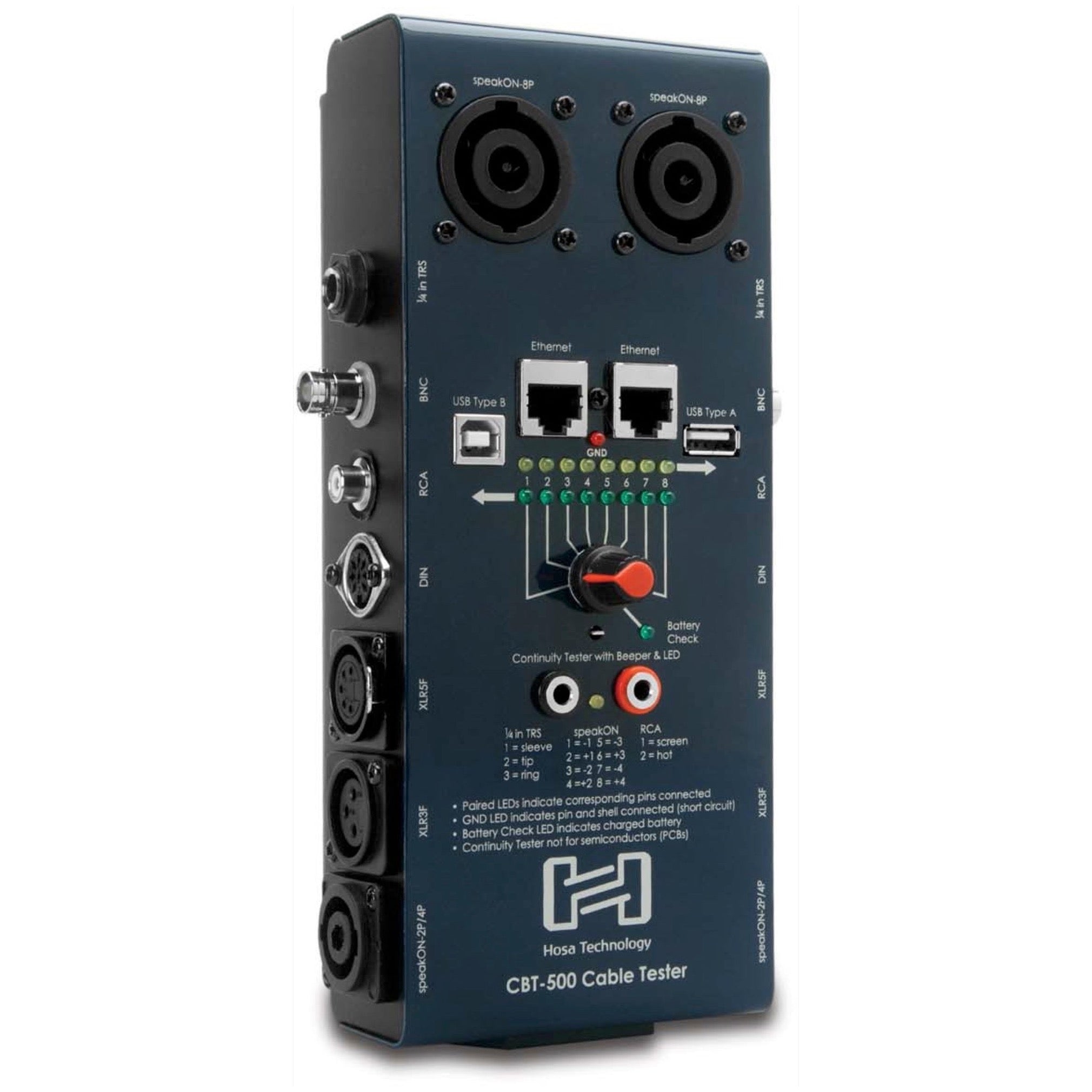

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).

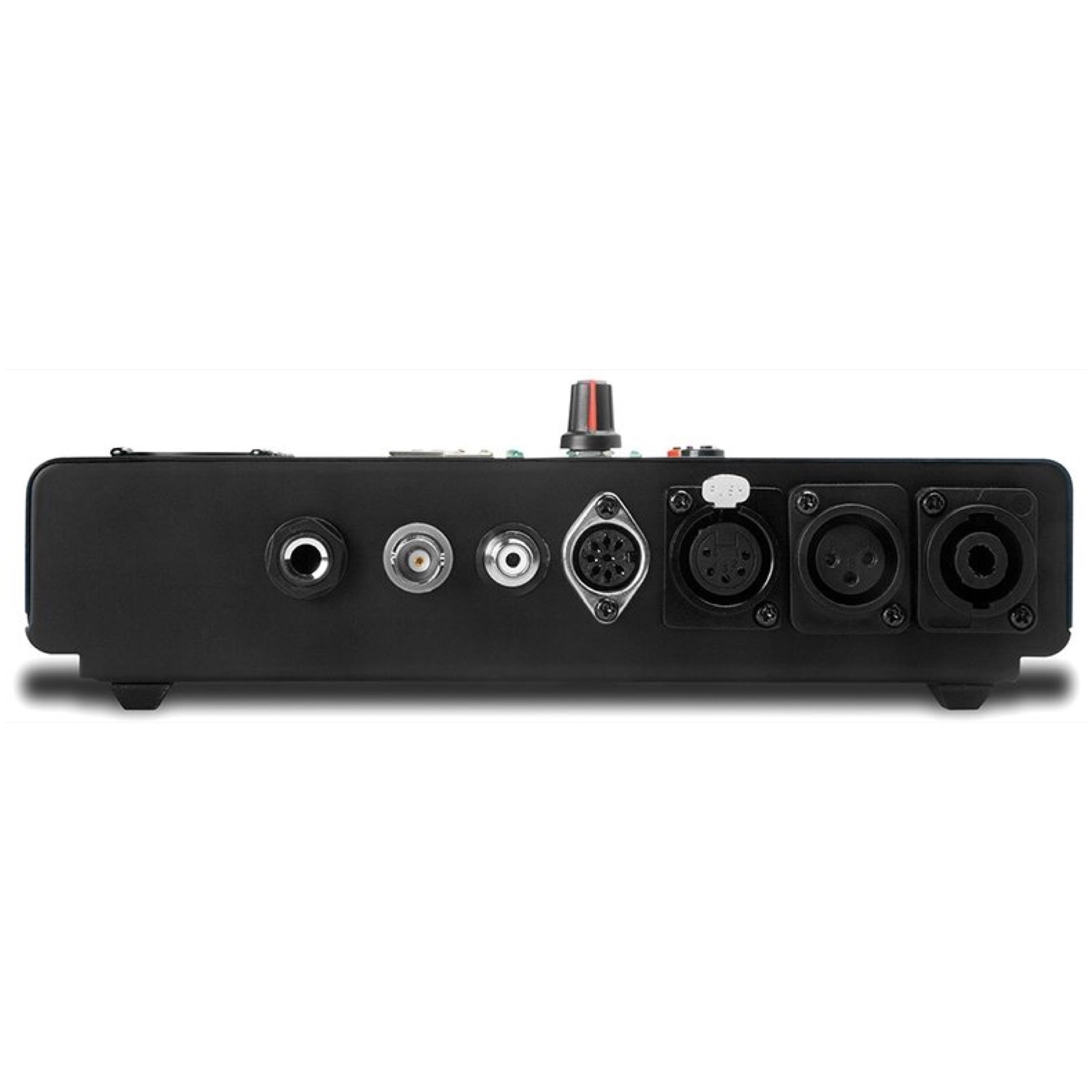

- Plug one connector into corresponding jack on left side of tester

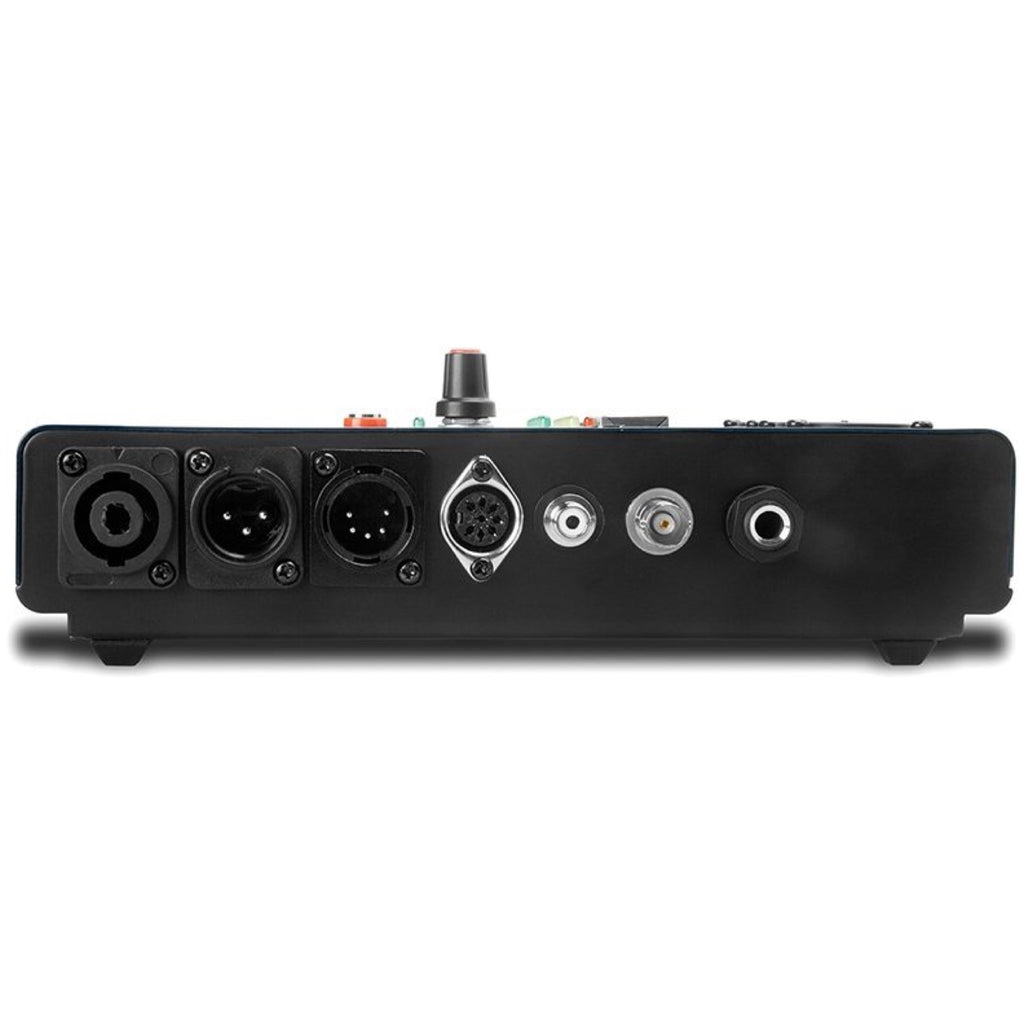

- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
- If continuity exists, the center LED will illuminate and tester will beep
- LED will illuminate if the battery is charged
- speakON 2-, 4-, and 8-pole
- Phono (RCA)
- 1/4" TRS and TS
- 3-, 5-, and 8-pin DIN
- RJ45 (Ethernet)
- 75-ohm BNC
- USB Type A to Type B

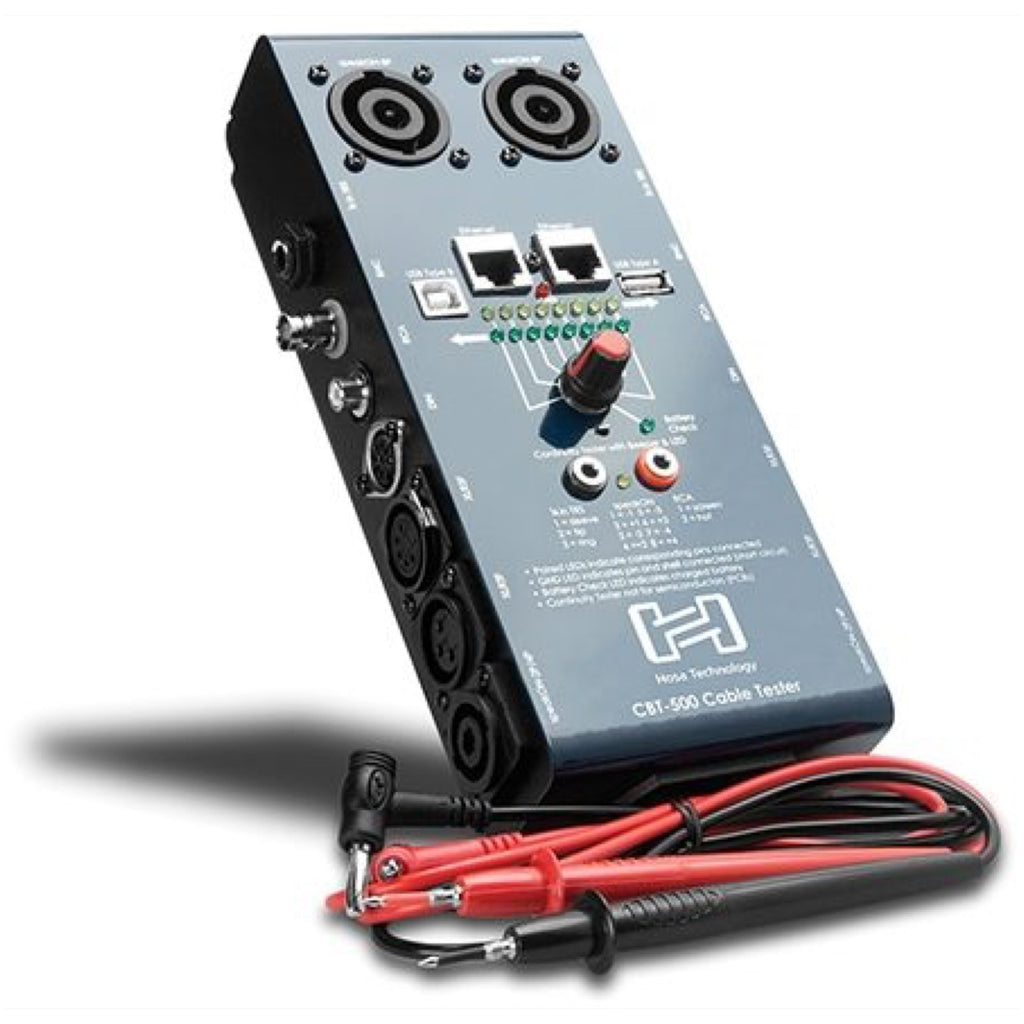

- Test probes for continuity testing of bare wire and any connectors not found on the CBT-500.
Hosa CBT-500 Cable Tester
We're sorry, but this item is unavailable.
Limited inventory! Only in stock.
New item! Preorder now. Risk free, arriving soon.
On backorder! Reserve now. Risk free, arriving soon.
Call to Order
Notify Me
×
Item added to your cart
×
Details
Cable Test:
- Turn knob to position 1- Plug one connector into corresponding jack on left side of tester
- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
Continuity Test:
- Apply the tip of each lead to the corresponding contacts- If continuity exists, the center LED will illuminate and tester will beep
Battery Check:
- Turn knob to Battery Check- LED will illuminate if the battery is charged
Compatible with the following cable terminations:
- XLR 3-pin and 5-pin- speakON 2-, 4-, and 8-pole
- Phono (RCA)
- 1/4" TRS and TS
- 3-, 5-, and 8-pin DIN
- RJ45 (Ethernet)
- 75-ohm BNC
- USB Type A to Type B
- Test probes for continuity testing of bare wire and any connectors not found on the CBT-500.
